NCURSES — Frequently Asked Questions (FAQ)

What is ncurses?

ncurses (new curses, pronounced "enn-curses") started as a freely distributable “clone” of System V Release 4.0 (SVr4) curses. It has outgrown the “clone” description, and now contains many features which are not in SVr4 curses. Curses is a pun on the term “cursor optimization”. It is a library of functions that manage an application's display on character-cell terminals (e.g., VT100).

The name “ncurses” was first used as the name of the curses library in Pavel Curtis's pcurses, dated 1982. It was apparently developed on a 4.3BSD system, at Cornell. Parts of pcurses are readily identifiable in ncurses, including the basics for the terminfo compiler (named compile in that package):

While the name of the library itself comes from “pcurses”, it had a different connotation to Curtis. His makefile built libncurses.a (normal) and libdcurses.a (debugging). In the documentation, Curtis referred to his package as “the new curses” like this, in changes.ms:

                 New Features in Curses and Terminfo

                             Pavel Curtis

     1.  Introduction

          This  document  describes  new  features that are being
     added to the Berkeley curses subroutine  package.   It  also
     describes  the  new  terminfo  database,  which replaces the
     Berkeley termcap database.  The emphasis is on the new  fea‐
     tures.

     2.  New Features in Curses
     ...
     2.7.  Mini‐Curses*

     ───────────
     *This feature is not supported in the current test
     release.  It will be implemented in  the  official
     distribution.

                                  ‐6‐

          The  new  curses is bigger than the old one, and has to
     copy from the current window to an internal screen image for
     every  call  to refresh().  If the programmer is only inter‐
     ested in screen output optimization, and does not  want  the
     windowing  or  input  functions,  an  interface to the lower
     level routines is available.  This  will  make  the  program
     somewhat  smaller  and faster.  The interface is a subset of
     full curses, so that conversion between the  levels  is  not
     necessary to switch from mini‐curses to full curses.

Rather than being at the start a replacement for AT&T curses, initially it was an extension of BSD curses. Later, supplanting AT&T curses became more important, with different developers.

Besides ncurses, parts of pcurses still survive in recognizable form in Solaris, etc., because the tic program from pcurses was used by AT&T (see related discussion). Some misinformation regarding pcurses was provided in a posting to comp.terminals long ago:

Mark took “terminfo” to AT&T with him, and it was adopted for UNIX System
V Release 2 as a replacement for “termcap” (which was temporarily still
supported in SVR2).  UCB, however, stuck with termcap for quite a while
(through 4.3BSD at least), merely bringing the termcap manual entry up to
date with the SVR2 version of terminfo insofar as possible (I was the
editor for the 4.3BSD termcap manual entry).  Pavel Curtis provided his
own public-domain implementation of terminfo/curses, but I don't think it
really caught on.

Who wrote ncurses?

In preparing copyright transfer in 1997, I identified more than 20 contributors based on my software archives.

These individuals were cited in the agreement as having contributed more than 20 lines of code each:

Heinz-Ado Arnolds, Jeremy Buhler, Andrey Chernov, J.T. Conklin,
Ulrich Drepper, Juergen Ehling, Werner Fleck, Per Foreby, Gerhard
Fuernkranz, Anatoly Ivasyuk, Andrew Kuchling, H.J. Lu, Alexander
V. Lukyanov, David MacKenzie, Rick Marshall, Hellmuth Michaelis,
Tim Mooney, Philippe De Muyter, Eric Newton, Andreas Schwab,
Jesse Thilo, Warren Tucker, Peter Wemm.

In addition to Florian La Roche, who agreed to act as maintainer, these were the principal authors of ncurses, for assigning copyright to the Free Software Foundation:

Pavel Curtis' work is in the public domain, hence not needed for copyright assignment. (The README file in the ncurses distribution also identifies the authors).

Florian acted as maintainer for about a year. I continued to do the bulk of development, and prepared the 5.0 release. After Florian left unexpectedly (before 5.0), I resumed my pre-4.2 role as the project maintainer.

Occasionally someone says that it is “written by the GNU Project”. That is incorrect:

See the ncurses license page for more information.

License issues

How can it be distributed?

The major ncurses developers (exclusive of Pavel Curtis, who put his work in the public domain several years before) early in 1998 assigned their copyright to the Free Software Foundation, which promised to use the following distribution terms for at least five years.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, distribute with modifications, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE ABOVE COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name(s) of the above copyright holders shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization.

Is it Free Software or Open Source?

ncurses is free software. It is not “open source” (refer to the license page).

That term applies to a mixture of proprietary software and quasi-free software, and is being promoted currently by several people for a variety of reasons: some as a compromise (in the pejorative sense) between free software and proprietary, and others to take credit for brokering the release of some proprietary software under less stringent conditions.

By relabeling free software (and revising the order of causes and events), the supporters of “open software” are doing the development community a disservice.

Is it GPL'd?

Surprisingly, some people cite ncurses as an example of GPL or LGPL. The copyright notice (which is the above-quoted license) appears 577 places in the 5.1 sources, including all of the header files. Presumably therefore, these people have not actually looked at ncurses.

Adding to the confusion, I have seen misleading comments such as this (originally this, but it comes and goes):

In particular, if you intend to port a proprietary (non-GPL'd) application using Cygwin, you will need the proprietary-use license for the Cygwin library. This is available for purchase; please contact sales@cygnus.com for more information. All other questions should be sent to the project mailing list cygwin@sources.redhat.com.

By omitting some of the facts (equating "non-GPL'd" with "proprietary"), this paragraph stated in terms of ncurses, for example, that I could not work on ncurses on cygwin without buying a license for Cygwin. The same applied to the developers of about half of the contributed software for Cygwin, since not all are GPL'd. There was a better attempt at explaining Cygwin licensing here, but the other page did not use it:

This means that you can port an Open Source(tm) application to cygwin, and distribute that executable as if it didn't include a copy of libcygwin.a/cygwin1.dll linked into it. Note that this does not apply to the cygwin DLL itself. If you distribute a (possibly modified) version of the DLL you must adhere to the terms of the GPL, i.e. you must provide sources for the cygwin DLL.

Probably more people read the FAQ (and were misled) than read the licensing page.

This type of license, by the way, is often referred to as "MIT-style", referring to the MIT X distribution terms. Before assigning copyright to the FSF (Free Software Foundation), substantial portions of ncurses were copyrighted in this style. The main restriction that affects most people is that the copyright notice must be kept on copies—or portions of the copies. That is not done in this online reference, which documents an older version of ncurses. The translation from manpage to html retains the content, but removes the copyright notice, which one may observe is not permitted. Compare with this (copyright notices are retained in the online content, as you can see in the source-view of the page).

For what it's worth, the agreement which we (original ncurses developers) made with the Free Software Foundation reads in part:

The Foundation promises that all distribution of the Package, or of any work "based on the Package", that takes place under the control of the Foundation or its agents or assignees, shall be on terms that explicitly and perpetually permit anyone possessing a copy of the work to which the terms apply, and possessing accurate notice of these terms, to redistribute copies of the work to anyone on the same terms. These terms shall not restrict which members of the public copies may be distributed to. These terms shall not require a member of the public to pay any royalty to the Foundation or to anyone else for any permitted use of the work they apply to, or to communicate with the Foundation or its agents in any way either when redistribution is performed or on any other occasion.

As is well known, that precludes relicensing to the GPL in any version, since it would place restrictions on which programs may link to the libraries. That would deprive a substantial fraction of the current user base of the use of subsequent versions of the software. No such restriction exists in the ncurses license.

Will ncurses ever be GPL?

I have never considered it a possibility (see the preceding section). It would make the package unusable for most of its current user base, because GPL is a more-restrictive license than MIT-X11 or any of the similar BSD licenses.

However, since the FSF holds a copyright to most of the releases published on its website, it is not impossible that someone might publish a version of ncurses relicensed under the GPL. In that case, I would continue development based on the previous version, using the existing license—the one to which I initially agreed. Because I do almost all of the development, and provide the development website, doing that would have little effect on subsequent releases.

The original agreement stated that changes which I made to the source would be copyright by the Free Software Foundation. That clause expired after five years (in 2003). It does require written notice (for instance today is June 25, 2007), so in the event of serious disagreement with the FSF, this webpage satisfies that. It is worth noting that all changes that I have made since the most recent release would be in that event copyright by me.

Moving forward to February 2020, relicensing was a moot issue. However, some issues with FSF (such as this) could best be done by taking ownership of the copyrights. In preparing for releasing ncurses 6.2, I sent mail to FSF advising them that ncurses 6.2 (and all changes since ncurses 6.1) will be copyright by me (same license, of course).

What about the tack program?

That is not part of ncurses. As a convenience (to reuse library functions that are part of tic and infocmp), it was distributed with ncurses since before 5.0 (patch date 990417). Beginning with release 1.08 in July 2017, it is able to work with other implementations of curses (although editing a terminal description—done rarely—requires ncurses).

However, tack is licensed differently: the GNU General Public License, version 2 (GPLv2).

This confused some packagers, who then labeled ncurses as GPL. Most packagers correct the designation when requested. Some do not. To avoid this confusion, it was removed from the ncurses distribution in 2007, shortly after 5.6 release.

Unlike ncurses, FSF does not have a release-page on its website for tack, and no one has suggested that it was written by the GNU Project. Except for a few (small changes), this was written by Daniel Weaver and me (see AUTHORS file in the source). Its homepage is here.

What about the terminfo database?

Copyright and Licensing

The terminfo database is a special case. Ncurses provides a different version of the terminfo.src file originally collected by Eric Raymond. The ncurses file is not maintained by Eric Raymond, since the agreement which transferred control to FSF states:

We hereby agree that if we have or acquire, or any one of us has or acquires, hereafter any patent or interface copyright or other intellectual property interest dominating the Program (or use of the same), such dominating interest will not be used to undermine the effect of this assignment,

Changes made to this file are (unsurprisingly) copyrighted via the Berne convention. No explicit "Copyright ©" is required. It only requires that the author be identified (and this is done in the history comments at the end of the file):

(1) In order that the author of a literary or artistic work protected by this Convention shall, in the absence of proof to the contrary, be regarded as such, and consequently be entitled to institute infringement proceedings in the countries of the Union, it shall be sufficient for his name to appear on the work in the usual manner. This paragraph shall be applicable even if this name is a pseudonym, where the pseudonym adopted by the author leaves no doubt as to his identity.

and noting the first comment in the file states that it is maintained as part of ncurses, this applies:

(3) In the case of anonymous and pseudonymous works, other than those referred to in paragraph (1) above, the publisher whose name appears on the work shall, in the absence of proof to the contrary, be deemed to represent the author, and in this capacity he shall be entitled to protect and enforce the author's rights. The provisions of this paragraph shall cease to apply when the author reveals his identity and establishes his claim to authorship of the work.

Raymond wrote a disclaimer in the terminfo.src file which disagrees with some of this. However, Raymond's disclaimer was based on more than one misconception. There is an interesting story about that in another place.

Attribution

Occasionally someone in a newsgroup posts a terminfo which has been exported using infocmp, saying that it is theirs (and even written by them). Sometimes the claim is true, though more often the data is identical to that from ncurses or a package which includes ncurses. The latter case is interesting.

For instance OpenQM used terminfo entries which were obtained from ncurses using infocmp. In discussion, one aspect glossed over was that some of the content was copied not from ncurses itself but from a packager's patch which merged a xterm terminfo which I wrote. Ultimately, the responses from that discussion boiled down to saying that they found it and it's theirs. (The maintainer did agree to add a comment noting the origin of the “public domain” entries).

Other Versions

Eric Raymond's website has an old version misleadingly numbered "11.0". It actually is much older than ncurses's terminfo (whose major version I have left as "10").

The content of "11.0" is derived from ncurses 5.0. It makes more than one change, but most are cosmetic (e.g., reordering the entries within the file, adding about 300 lines of comments—in an 18,655 line file—to make the reordering look nicer). None of the added comments are useful.

It also modifies the changelog from ncurses to make it appear that people who reported problems to me were the ones who did the subsequent investigation and patches. He had done the same thing prior to ncurses 4.2, for several months in 1997 and 1998, copying changes from ncurses development, and then later “revising” the change history. (I later restored that portion of the changelog).

The last version (11.0.1) copies one of my fixes from ncurses, (prompted by a bug-report by Tijs Michels on the rxvt-workers mailing list in January 2000, in response to ESR's announcement of "11.0.0"). In the mailing list, I pointed out the reason for my change. My original change comment in 1997 said

# 10.1.16 (Sat Dec 13 19:41:59 EST 1997)
#      * remove hpa/vpa from rxvt, which implements them incorrectly.
#      * add sgr0 for rxvt.
#      * remove bogus smacs/rmacs from EMX descriptions.

GNU termcap 1.3.1 distributes "11.0.1", generated using ncurses' tic program. Disregarding the issue that the file is old and faulty, the reason for generating the file is that ESR's website does not provide a version which resolves all but the last "tc=" inclusions.

How big is ncurses?

The answer depends on why you are asking. Some of the reasons for asking include

Growth of the feature set

As noted, ncurses began as a clone of SVr4 curses (up til around 1995). Later, The Open Group began a specification of curses (XSI Curses), which is now known as X/Open Curses. That provided for "wide-characters", such as Unicode, although at that point Unicode was not the obvious answer.

There were a few functions (such as attr_get) which were added into the ncurses library in anticipation of XSI Curses. However, I chose to implement the wide-character support using a different library name, “ncursesw”. Doing that allowed me to maintain compatibility with applications that used the existing “ncurses” library.

Given that, the “ncurses” library would be comparable to a SVr4 implementation (such as Solaris, IRIX64 or HPUX), while the “ncursesw” library would be comparable to one of the XPG4 implementations (Tru64 being the notable implementation). The ncurses (and ncursesw) library provide some extended functions not found in SVr4/XPG4. A few implementations (PDCurses and NetBSD curses) provide some of these extensions.

Later, I added functions to support simple threaded applications, and Juergen Pfeifer extended that. Again, to maintain compatibility, this is normally built as a a new library name, “ncursest” or “ncurseswt”. First noted in mid-2011, at this time (mid-2020), there is no other implementation of these features.

The ncurses and ncursesw libraries are reasonably source-compatible. That is, an application written for “ncurses” will build with “ncursesw”. But it will behave differently in response to your locale settings. (Some distributors, who do not care about the differences, have chosen to merge the names together as “ncurses”).

A few applications require changes to use “ncursest”, since internal details of the WINDOW object are not directly visible in the latter. However, the “ncurses” library has macros and functions which address this area.

Every implementation of curses uses both macros and functions to provide their features. ncurses follows the XPG4 convention where all macros (except for those such as getyx which must be implemented solely as macros) are also implemented as functions.

Here are counts comparing ncurses 5.9 with other implementations:

Implementation Macros Public symbols
ncurseswt (sp-funcs) 219 541
ncursest (sp-funcs) 153 439
ncurseswt 219 429
ncursest 153 332
ncursesw 219 454
ncurses 153 357
Tru64 5.1 228 481
Solaris 10 XPG4 180 374
Solaris 10 SVr4 199 422
IRIX64 6.5 195 394
HPUX 11.23 XPG4 162 472
HPUX 10.20 XPG4 172 468
HPUX 10.20 SVr3 197 323
AIX 7.1 207 480
PDCurses 3.4 9 364
NetBSD 5.1 86 367

In each case, internal functions are not counted.

The Unix implementations include undocumented features for compatibility with older curses implementations that are not provided by ncurses.

Both PDCurses and NetBSD curses contain functions not counted here because they are not relevant to a comparison with SVr4/XPG4 curses. For example, PDCurses in X11 contains functions for initializing the X window. On the other hand, relevant extensions such as PDCurses' version of wresize are counted.

Types of library users

PDCurses on the other hand does not include the functions used to obtain terminfo information. That does not prevent it from being a curses implementation. X/Open Curses' documentation treats those separately, allowing for the possibility of curses implementations without terminfo (or termcap either for that matter).

That raises another issue: what types of interfaces do curses libraries (and ncurses in particular) support?

ncurses includes the conventional curses interfaces, with extensions (new functions) in each interface. The interfaces are:

Curiously, NetBSD provided variants of the form and menu libraries in late 1999, but lacked a panel library until 2015 (see source). Conversely, PDCurses provides a panel library but lacks the form and menu libraries. Because NetBSD uses opaque structures, it is difficult to write portable applications using their form and menu libraries. The ncurses-examples have some workarounds for this to allow them to compile with NetBSD curses. One might have better luck with PDCurses' panel library, which has the same ancestor as ncurses' panel library.

The lower-level interfaces rely upon the application (rather than the library) to decide how to put characters on the display. That is referred to as “optimization”, e.g., in the documentation:

The ncurses library routines give the user a terminal-independent method of updating character screens with reasonable optimization.

Most applications made the transition to using the curses interface long ago. There are some applications which use one of the lower-level interfaces. In some cases there are technical reasons for this. Inertia is more often the reason.

Here are some examples of well-known applications which use curses:

Widely-used termcap applications include these:

Applications which use only terminfo are less well-known. For example, there are

Because the terminfo and termcap programming interfaces are similar, it is trivial to make an application build with terminfo if it was originally written to use termcap. These are done using a table for the capabilities, taking advantage of the fact that all of the conventional termcap capabilities are associated with terminfo capabilities. Here are a few examples:

Going the other way (starting with a terminfo application and making it work with termcap) is not necessarily simple:

Because of these differences, it is best to speak of termcap-applications, terminfo-applications and curses-applications. Curses-applications may use terminfo functions, but the reverse is not true. Given the terminfo interface, there is no reason for a curses-application to use the termcap interface.

An easy way to distinguish between the three types of applications is to see what library calls they make:

Even this categorization is simplified:

Nothwithstanding their use of low-level calls, these are curses applications because they use the library to update the display. Non-curses (termcap and terminfo) programs use only the terminal database. Applications which do their own display optimization (such as vim) are not curses applications.

If someone simply categorizes any application which is linked to (or uses in some sense) the ncurses library as an ncurses application, that rapidly leads to absurd conclusions, as for example in Debian #265631, where a developer insisted that a bug (apparently in a different library) was a bug in ncurses because the application in question used the gpm library. In other cases, e.g., lists made by nondevelopers based on package dependencies, this sort of misinformation is commonplace.

Relationship with vi

Not all implementations of vi are curses applications. In fact, considering it carefully, most are not.

One likely objection to that statement is the generally accepted notion that Ken Arnold “took” functions from Bill Joy's vi to make his library. For instance, in the preface to UNIX Curses Explained, Goodheart said (in 1991):

It all started in the late 1970s when Bill Joy, in writing his editor ex (probably more famous by the name vi nowadays), wrote a set of routines which read a terminal capability database. The database, then named termcap, generally described how to manipulate individual terminals and what they where capable of. The routines he created, which accessed the termcap database, implemented optimal cursor movement.

Kenneth C.R.C. Arnold took these routines almost without changes and derived from them what is known today as the curses package.

People tend to refer to the second paragraph without noticing the first one. The “where” versus “were” typographical error in the first paragraph is an error by the publisher. The last sentence of the first paragraph is an error by the author: termcap does not, never did do that.

Optimal cursor movement (cursor optimization) in ex was done in the remainder of the application. The termcap functions were readily reusable; the remainder was not. Arnold added to Joy's original idea by making the library reusable.

The Unix Heritage Society has copies of 3BSD, 4.2BSD, 4.3BSD (multiple). Using those, one can make useful comparisons :

Joy's header file is littered with separate variables. Arnold's header file organizes those into structures, notably WINDOW. The vtube array in the former corresponds to the bulk of the storage used by WINDOW. In the same way, Arnold recognized useful aspects of terminal manipulation scattered through ex, and organized those into a library which improved on the original design. Aside from beep, there is no straightforward mapping between the functions in the two programs.

Traditional vi, however, does not use curses. With the release of 4.2BSD, it lost its private copies of the termcap functions, and, in the main branch of development, at AT&T, became a terminfo application. With 4.3BSD, the termcap-based vi (and derived code such as “heirloom vi”) was no longer the main line of development. Bostic's nvi was a re-implementation (based on elvis), done specifically to disentangle the BSD project from AT&T source code.

Switching to terminfo was simple. Switching back would be hard, since the AT&T vi uses the TERMTYPE structure for accessing the terminal capabilities. AIX, HPUX, IRIX64, Solaris all use the AT&T-derived vi.

Applications miscited as library users

Here is a short list of applications commonly confused as users of curses, terminfo or termcap. The reason for the confusion is that they use the TERM environment variable, and some give a little attention to the terminal database. But the essential approach taken by their developers is to hard-code their assumptions about the terminals.

Where is ncurses used?

ncurses should build and work on any POSIX platform. It also works on some platforms that are non-POSIX. However, it requires these POSIX features (available on all supported platforms):

Generally workable systems

Current development is focused on the wide-curses configuration (ncursesw). These platforms are known to work:

The normal (8-bit character) configuration is known to work on the same platforms. I've also built these in preparation for the current release:

Previous releases listed other platforms (or versions) which are no longer available for development and testing, e.g., IRIX64, SCO OpenServer, SunOS 4, Tru64. Most of those probably work as well, but keep in mind that because they are defunct, only minor changes would be considered in bug reports.

non-Linux systems

That is a summary of the recent work which I have done. Others package ncurses and provide it either as the system curses library, or as an add-on. Some people assume that ncurses is a “Linux” program. That is incorrect. Since half of my users are on non-Linux systems, here are some notes:

Other systems: VMS

While working on tin in 2000, I noticed that VMS curses is essentially 4.3BSD curses (no color, no video highlights beyond standout, no locale support hence no support for wide-characters). There is no working port of ncurses to VMS.

A defunct port of ncurses associated with GNV is mentioned here (source in Mercurial):

The ncurses distribution only includes programs that must be maintained with it, since they rely on internal details of the library.

Part of the ncurses distribution (the test/demo ncurses-examples) are designed to work with other versions of curses, to help with comparisons.

The release announcements list examples of the different types of library users (e.g., in Applications using ncurses).

A few of those are special, because others used them as examples of ncurses usage, leading to direct involvement in improving their use of ncurses:


What is the latest version?

The current stable version is 6.4 20221231, available from the ncurses homepage:

HTTP: ncurses.tar.gz (mirror)

Local: ncurses.tar.gz

I also maintain development patches toward the next release. See the NEWS file for changes.

HTTP: https://invisible-mirror.net/archives/ncurses/6.4/ (mirror)

Local: /archives/ncurses/6.3/

After announcing a new patch, I provide the source in an alternate form as described here:

ncurses-snapshots

Official releases

There have been a number of releases of ncurses. Some are available on CDROM (beginning with 1.9.4), and are archived on various ftp servers. If you are downloading, however, the older versions are of limited interest except for software testers.

Known/Frequent problems

Building and Installing NCURSES

How do I run the test-programs?

You must first install the terminfo data (i.e., "make install.data").

On many systems (those that have a SVr4 curses installed) you can run the test programs using the vendor's terminfo database (e.g., Solaris, IRIX, HP-UX) by setting the TERMINFO variable to point to that instead.

How do I apply patches?

See also How are patches organized?

I name development patches after the base release, with the patch date originally (in 1996) in the form yymmdd and starting with the year 2000 yyyymmdd.

Where are the patches?

Development patches (and a rollup patch updated periodically) are available for download:

HTTP: https://invisible-island.net/archives/ncurses/6.4/

HTTP: https://invisible-mirror.net/archives/ncurses/6.4/

Look for a file named something like "patch-6.4-yyyymmdd.sh.gz" The "yyyymmdd" part corresponds to the patch-date.

After providing a rollup patch, I remove the development patches to reduce clutter. Beginning in May 2013, I modified the process to provide all of the development patches since the release in “dev-patches.zip”.

There are also a few rollup patches between releases:

Download:

The rollup patches include all patches through the cited version. You must apply them to the base release, e.g.,

zcat ncurses-4.1.tar.gz |tar xf -
cd ncurses-4.1
sh ../patch-4.1-4.2.sh

I have tested the rollup patches with patch 2.1 and 2.5, adjusting for their respective limitations.

The terminfo database is big—do I need all of that?

Not at all. You can load a subset of the terminfo database. I use a variant of this script to load the terminal descriptions that I need on my machine:

#!/bin/sh
# uses the -e switch on tic to selectively load descriptions that are
# interesting for my testing.
if test -f terminfo.src ; then
        TMP=/tmp/load$$
        trap "rm -f $TMP" 0 1 2 5 15
        tic -s -1 -I -e'
ansi, ansi-m, color_xterm, ecma+color,
klone+acs, klone+color, klone+sgr, klone+sgr-dumb,
linux, pcansi-m, rxvt, vt52,
vt100, vt102, vt220, xterm'
 terminfo.src >$TMP
        tic -s $TMP
else
        echo 'oops'
        exit 1
fi

Do I really need a terminfo database?

You could compile-in fallback definitions for the most commonly used terminal types. To do this, you must already have infocmp installed (note that ncurses 5.0 infocmp's support for fallback descriptions is done differently from ncurses 4.2).

But fallback definitions are really only useful in embedded applications, where no external files are wanted.

Which terminfo database do I need?

The most reliable terminfo database is that distributed with ncurses 5.0, or via followup development patches. The original process of incorporating terminal descriptions from various sources corrects some errors in the originals, but introduces others (either translation errors, or misconceptions). Besides working to resolve these, from time to time we incorporate new sources.

As noted in 29 February 2004, the terminfo database at http://www.catb.org/~esr/terminfo/ does not appear to be actively maintained. Since the release of ncurses 5.0 in late 1999, there are numerous fixes which are not in that database.

As of January 2012, this is still true. A check with

infocmp -x -F termtypes.master terminfo.src

reports that there are 1807 differences for the entries which the two have in common, as well as 325 entries not in the “master” terminfo database.

Here are links to current versions:

If you choose to not install the ncurses terminfo database, we have found that the SVr4 systems (Solaris, IRIX 6, OpenServer and HP-UX 10) work well enough for many purposes. Other systems either are not binary compatible, are incomplete, or contain more errors than either of the choices mentioned. Some that are not binary compatible can be accommodated by configuring ncurses to use the native terminfo format. These include AIX, HP-UX 11, Tru64 and U/Win.

Is ncurses terminfo compatible with my system?

Usually.

Terminfo is compiled into binary form, with booleans, numbers and strings in arrays. As long as the array items line up, and the headers (that tell how long the arrays are) are compatible, ncurses and your vendor's system can each use the same terminfo database. Older sytems (e.g,. those based on SVr3) implement a subset of the SVr4 terminfo. For example, HP-UX 9 is “compatible” up to the entries that would describe graphic (box) characters. There it diverges.

Other systems (e.g., Digital Unix 4.x and the older AIX 3.2.5) use different formats and are not compatible.

But those are (very) old systems. If you are not running a computer museum, you may not even recognize the names of these systems.

Even for very old systems, however, terminfo source is compatible and can be compiled using the appropriate tool (usually tic). Some terminfo descriptions may produce warnings (e.g., the memu/meml capabilities in the standard xterm distribution), but the tools compile what they recognize and warn about the rest.

The ncurses tic program recognizes a wider range of input than other terminfo compilers, including extensions coordinated with infocmp that make it easier to use:

More important, ncurses tic allows new terminal capabilities to be defined, by the -x option. Rather than warning about unrecognized capabilities and (otherwise) ignoring them, ncurses tic will add those to the end of the compiled terminfo file. Those additions (referred to as user-defined capabilities) are hidden from the older SVr4 tic programs because they see only the part described by the file's header.

The older SVr4 tic, of course, is unchanging. Development (and maintenance) stopped long ago. But ncurses development is still (as of 2020) ongoing. Occasionally some bug is found which affects the terminal database:

In each case, the tool was improved, but older versions cannot handle the newer terminfo source. If you must use an older version of ncurses, use the terminfo source which was distributed with that version of ncurses.

If you are using ncurses terminfo with another implementation of tic, the advice is different:

Is the ncurses library compatible with my system?

Yes/no.
Source compatible yes, binary compatible no.

You cannot simply replace your existing curses or termcap library with ncurses unless you are prepared to recompile applications that use the curses or termcap library (e.g., vi, telnet).

For systems using the Linux kernel, that is feasible. But not Solaris or other proprietary systems. For those, I recommend configuring with the --disable-overwrite option. This directs the configure script to install the library so you would link it as -lncurses, not adding a symbolic link to make it link as -lcurses.

The --disable-overwrite option also installs the header files such as curses.h in a subdirectory, e.g., /usr/local/include/ncurses/curses.h, thereby avoiding a (mis)feature of recent versions of gcc which look first in /usr/local/include for header files. Since the vendor's compilers do not do this, a common problem results: compiling with /usr/include/curses.h and linking with /usr/local/lib/libcurses.a.

Starting with ncurses 5.3, the behavior for this option changed. If you do not install into /usr, the configure script will assume you do not wish to overwrite the existing version of curses. Configure scripts which do not check for ncurses headers in both locations are incorrect anyway. They can be accommodated by setting the $CPPFLAGS environment variable, e.g.,

setenv CPPFLAGS "-I/usr/local/include/ncurses"

Problems with remote shells

Some users notice that remote machines do not have the same set of terminal descriptions as their local machine. Running a remote shell on those machines can be a problem because typical ssh configurations export the TERM variable to the remote machine.

Developers who work on multiple machines should be used to this problem. It is not new: the various operating systems (Unix, BSDs, MacOS and those using the ncurses terminal database) have different features, different versions.

One interesting quirk is using the screen program. The manual page notes:

When screen tries to figure out a terminal name for itself, it first looks for an entry named "screen.<term>", where <term> is the contents of your $TERM variable. If no such entry exists, screen tries “screen” (or "screen-w" if the terminal is wide (132 cols or more)). If even this entry cannot be found, "vt100" is used as a substitute.

Although screen's mapping to different terminals is less than perfect, it is possible to improve the mapping by providing customized "screen.<term>" entries. The ncurses terminal database has done that since early 2001.

As along as the local and remote terminal databases are complete and up-to-date, things go well. When they are not, users encounter problems such as in

Debian #854414 — screen: after sshing, some commands give error "Error opening terminal: screen.xterm-256color."

The discussion is rather long, with as they say, something for everyone. The resolution (adding documentation) does not really solve the problem, since the screen manual page has been available for some time.

Just to keep things interesting, ncurses 6.1 provides a new way to solve the problem. The infocmp program can print a terminal description in a a single line, which when assigned to the TERMINFO variable lets the library read the terminal description directly from the variable. Old-time developers who are knowledgeable about termcap might see a similarity, but that changes with a closer look:

This works with ncurses 6.1:

TERMINFO=$(infocmp -0qQ1) ssh remote

and if the TERMINFO variable has been added to the list of environment variables in the ssh and sshd, then ncurses 6.1 applications on the remote system will read the terminfo description from the environment variables. Applying the changed TERMINFO to the single ssh process is preferable to blindly setting it in your shell's initialization scripts.

That would not work with systems that do not use ncurses 6.1, but unless the TERMINFO variable is accepted in their respective sshd configurations, they will not be confused by this extension.

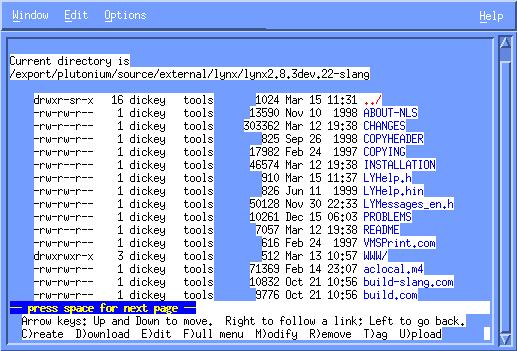

For those curious about other libraries, slang will ignore the “broken” $TERMINFO and rely upon its compiled-in terminfo list. Other problems can of course occur.

Problems with Cross-Compiling

I have done occasional cross-compiles of ncurses since 2003, using DJGPP as a target, and recently (writing this in 2010) some MinGW builds. For example

TARGET=mingw32
configure \
        --with-build-cc=gcc \
        --host=$TARGET \
        --target=$TARGET
make

Cross-compiles of ncurses require compiling utilities which are then executed at build time. The utilities are wrappers around ncurses library functions, which means that some special #define's may be needed to compile them. In particular (until May 2010) cross-compiling the wide-character library required adding something like this:

--with-build-cppflags=-D_XOPEN_SOURCE

Ncurses 5.7 introduced a separate problem. The terminal database distributed with it uses a feature that causes older versions of tic to hang. If you are cross-compiling, the database is installed using your system's copy of tic. You can work around the problem by either updating ncurses (5.7 was released in 2008), or substituting an older version of misc/terminfo.src in the build tree.

Configuring NCURSES

Do I need all of those programs and libraries?

Well, I use them...

Wrong answer.
You may need only the ncurses library, or even just the terminfo database. The top-level Makefile in the build tree is designed to let you install various combinations according to your requirements. But there are a few constraints:

Do I need the C++ binding?

You may not need the C++ binding for ncurses. However, you should configure ncurses with C++ if it is available on your system. Otherwise, you will not be able to compile ncurses applications with the C++ compiler.

This point is not clear in the INSTALLATION instructions, having been thought too obvious to dwell upon. However, some distributors have “customized” ncurses, omitting the C++ binding to save space (or the time to issue separate "make install" commands for the components which they really need).

The problem is this:

The ncurses configure script determines the actual size used for bool by the C++ compiler on your system. If you suppress this configuration check, the default size for bool is not guaranteed to work with your compiler.

With 5.0, the configure script provides two options (--without-cxx and --without-cxx-binding). Use the former to suppress the configure checks for the C++ compiler, e.g., when there is no working C++ compiler on your system. Use the latter to omit the C++ binding, if you must.

Why does make menuconfig fail?

I can only guess (people having trouble in this area generally do not answer email ;-)

The Linux “make menuconfig” attempts to build a customized dialog program called lxdialog. This uses ncurses, which of course is why you are reading this question/answer.

Problem building with gcc 2.96.x

The C preprocessor in gcc 2.96 is broken. In particular, the C preprocessor has multiple bugs including

These were apparently fixed in gcc 3.0.4 (do not waste time with gcc 3.0).

Problem building C++ interface with gcc 3.x

Since releasing ncurses 5.2, this has been the most frequent reason for referring people to the rollup patch. The problem is that the C++ bindings to C functions such as vsscanf() were altered (more than once, apparently as an afterthought) in preparing the gcc releases. Since the gcc changelog does not cite these changes except obliquely, and they are undocumented, it is possible that they may change again.

Testing for Memory Leaks

Perhaps you used a tool such as dmalloc or valgrind to check for memory leaks. It will normally report a lot of memory still in use. That is normal.

The ncurses configure script has an option, --disable-leaks, which you can use to continue the analysis. It tells ncurses to free memory if possible. However, most of the in-use memory is “permanent” (normally not freed).

Any implementation of curses must not free the memory associated with a screen, since (even after calling endwin()), it must be available for use in the next call to refresh(). There are also chunks of memory held for performance reasons. That makes it hard to analyze curses applications for memory leaks. To work around this, build a debugging version of the ncurses library which frees those chunks which it can, and provides the exit_curses() function to free the remainder on exit. The ncurses utility and test programs use this feature, e.g., via the ExitProgram() macro.

Customizing NCURSES

How do I set up a private terminfo database?

If you must maintain your own terminfo database, SVr4 curses and ncurses both use the $TERMINFO variable to override the standard location of the terminfo database. Ncurses also provides two related extensions: the $HOME/.terminfo directory and the $TERMINFO_DIRS search path.

Though ncurses tests $TERMINFO first, otherwise it reads from $HOME/.terminfo before the standard location, and writes to that location after failing in other places. This design is a compromise which is made more complicated if you have configured ncurses with the --enable-termcap and --enable-getcap-cache options. Unless you are prepared to deal with the hidden conflicts, you should simply remove the $HOME/.terminfo directory.

If you do not wish to use $HOME/.terminfo (and are not able to replace ncurses on your system), ncurses 4.2 and later work properly if you replace that directory with a file so it cannot write terminfo entries which would conflict with the standard location.

The toe program can show a side-by-side comparison of terminal databases, making it simple to see conflicting entries from your private terminal database.

As noted, ncurses also provides the $TERMINFO_DIRS extension. Unlike $HOME/.terminfo, this allows you to specify one or more locations for the terminal database. When reading a terminal description, ncurses chooses the first one found. Using this feature, you can tell ncurses to look in your own database(s) as well as one or more system-defined locations.

The usual reason for creating a private terminal database is to work around inability to change the system's terminal database. Setting $TERMINFO suffices for most users, and happens to work with other implementations than ncurses. However, for non-ncurses implementations, it limits the user's environment to just the terminal database indicated by the $TERMINFO variable.

As noted in "Which terminfo database do I need?", there are a few older systems whose compiled terminfo files differ slightly from the SVr4 layout used by ncurses. While ncurses can be compiled to match the system's format (I do this), it seems to be a less-used feature. Packagers prefer the simpler approach of letting ncurses use its database and leaving the system applications alone. There are then these cases for constructing private databases in an NFS-mounted home directory, shared across different operating system types:

A good place to start when customizing a shell initialization script for your private terminal databases is of course uname, since it is provided on the systems which are relevant to this topic, and its output can tell which system type is used. Alternatively (if your environment happens to have an inconsistent mixture of ncurses packages), the hostname is another place to get useful parameters for the initialization script.

As a rule, these settings should be done in the shell's login script rather than the one which is run on each shell initialization.

My terminal is not recognized

Usually this happens because you have not installed the terminfo database, or it is not in the proper location. If you do not, and (if ncurses happens to be configured to provide termcap support using the "--enable-getcap-cache" configure option) the application is unable to locate the terminfo database, the ncurses library will attempt to recover by reading /etc/termcap, translating it into a private terminfo database, i.e., a directory:

$HOME/.terminfo

This directory can be a nuisance, because the termcap file often does not contain complete or consistent terminal descriptions. Remove it and correct the problem (i.e., install the terminfo database). Better yet, do not enable the feature (it has been disabled by default since late 1996).

You (or the person who configured ncurses) may have installed terminfo in the wrong, or an obsolete location:

Why use terminfo instead of extensible termcap?

Several reasons:

As an example of how this extensibility feature can be used, consider the case of OpenQM, whose developers copied more than 1000 lines of ncurses library code into their application to support some extended terminal capability features. Here are two patches showing how that can be improved by removing the nonstandard features:

What implementations of terminfo are extended?

This could be a much longer answer, but the FAQ is long. A really short, but unsatisfying answer might be just “ncurses and libraries written to work with its database or to imitate it.” Here is a compromise:

Of course, termcap, unlike terminfo, is interpreted and users could always just add capabilities as needed (although the absence of a standard termcap was a drawback). That initial implementation addressed most of the supposed advantage of termcap over terminfo, except:

A decade later, a few implementations were based on ncurses' extended terminfo:

But there were few applications which used the extended information aside from xterm and tmux.

So far, that addresses only ncurses' initial implementation. But ncurses is still under development.

Extended numbers (32-bits) were provided by ncurses 6.1 early in 2018:

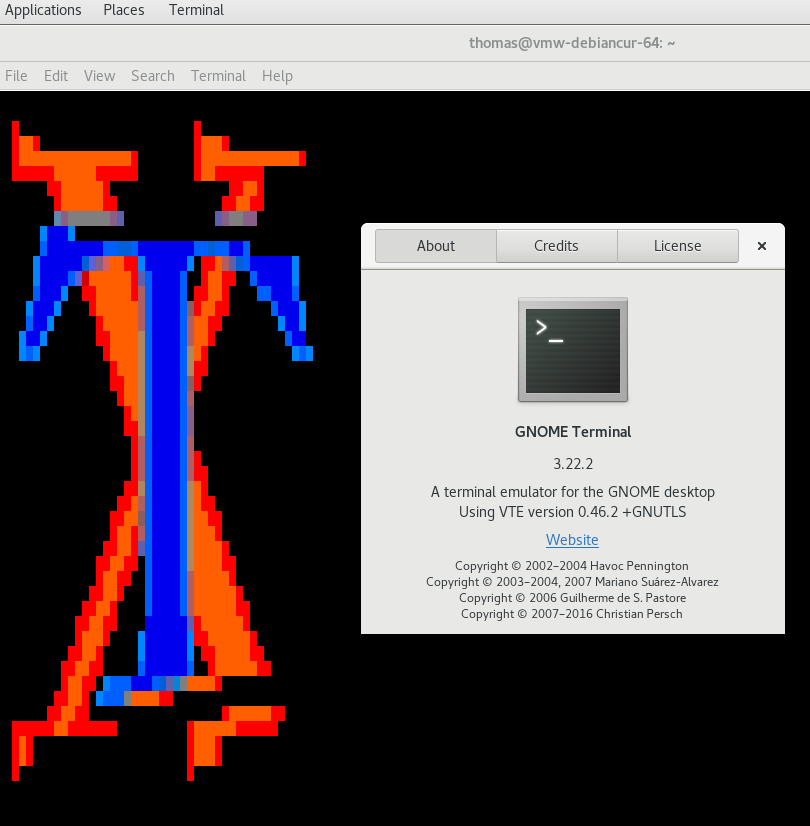

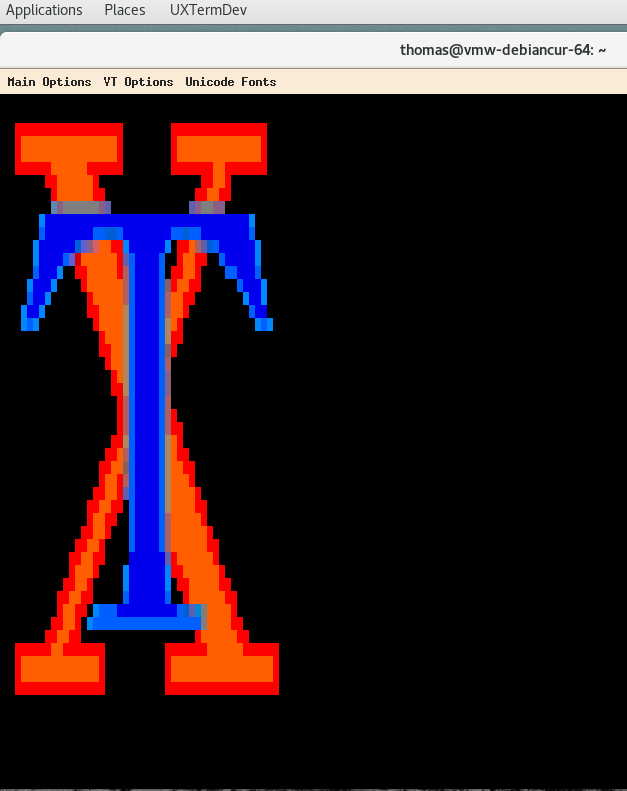

While developing the extended numbers feature for ncurses 6.1, the other limitation (one type per capability name) arose in an end-user application:

Fixing the terminal description is easy. Improving the tool takes more time. Development toward ncurses 6.2 made these changes:

Although the problem was fixed in ncurses, users continue to recommend using the corrupt terminfo file (for example, tmux #1593). The first of those changes to ncurses addresses that source of error.

Making NCURSES Fast

Why does my program scroll slowly?

Besides padding (i.e., time delay) information, which may be slowing your application down on a terminal emulator, ncurses provides two versions of scrolling optimization. The newer/improved version was incompletely tested at the time of release of ncurses 4.2, so it was marked experimental in the configure script.

The newer scrolling (hashmap) algorithm does not work properly in older versions of ncurses. Starting with ncurses 4.2, however, we recommend enabling this logic when configuring, using the --enable-hashmap option. It is configured by default in ncurses 5.0

Why does VT100 refresh slowly?

Some terminal descriptions contain padding (i.e., time delay) information. Ncurses uses this information to slow down the rate at which characters are sent to the terminal.

However, the vt100 terminal description, which is one of the most widely used (or misused) contains padding information for a real DEC VT100. It is not suitable as a replacement for the xterm terminal description. (Xterm requires no padding).

If you must use the vt100 terminal description, you may consider setting the NCURSES_NO_PADDING environment variable which is implemented in current versions of ncurses (since late 1998). That directs ncurses to ignore nonmandatory time delays in the terminal description.

Making Color Work

How do I get color with VT100?

Sorry. Real vt100's do not do color (ANSI or otherwise). Likewise, vt220, vt340 do not support ANSI colors. You may be running a terminal emulator which does and do not like this explanation.

You get "color with VT100" by running a terminal (or emulator) that supports colors, and by setting up the terminal description so that ncurses knows how to perform basic operations (setting the foreground and background colors). See My terminal doesn't recognize color.

Ncurses does not “know” that your terminal does support color. You must tell it. Some terminals (e.g., the higher models of DEC's VTxxx series) provide status information to a host on the capabilities supported by a terminal. Unix hosts do not interpret this information to set your $TERM environment variable. Instead, $TERM is set based on the connection which you make with your computer (e.g., a device listed in the /etc/gettydefs or /etc/gettytab files). You can override this by setting $TERM to a correct value or setting $TERMINFO to a private database.

Ncurses does not by itself know that vt100's do not do color. The standard reference for VT100 is its reference manual. There is a copy of that on vt100.net (look for EK-VT100-TM-003_Jul82). There are of course contrary sources of information about color-vt100's. The earliest one that I have seen is this (a copy of which has also been found here), which (besides the misinformation in its opening paragraph) has more than one point where it differs from vt100:

There are several copies of this document (usually missing the copyright notice) available around the Internet.

After Andrey Chernov added vt100-color and others to the FreeBSD termcap file in 2002, I discussed this with him, pointing out that while there are terminal emulators which do this, the hardware did not. He resolved the issue by adding a comment:

# For color-enabled terminal emulators

(See revisions 1.117 and 1.119).

Even with that clarification, there are others who conflate “ANSI”, “VT100” and color, for example

Ncurses does not have terminal descriptions such as vt100-color because those are inevitably an oversimplification. For related discussion, see my comments on "xterm-color".

My terminal doesn't recognize color

Check the terminal description, to see if it is installed properly (e.g., in /usr/share/terminfo) by looking at the output of infocmp.

It should contain the following capabilities (shown with infocmp -L):

orig_pair or orig_colors
and max_colors
and max_pairs

as well as

set_foreground and set_background
or set_a_foreground and set_a_background
or set_color_pair

The orig_pair and orig_colors capabilities are not required in ncurses 5.0 (SVr4 curses works properly without them). For the rest:

The most common complaint is that "I can see colors using ls, but not with ncurses applications". This is due to not having installed the terminfo database. GNU ls (in contrast to FreeBSD ls) uses its own data (with hardcoded SGR numbers and ignoring the back color erase (bce) feature supported in terminfo/termcap), which is unrelated to other applications. To be fair, GNU ls does have an environment variable (LS_COLORS) which can be used to customize the numbers a little, but in practice very few users modify it.

Other libraries or applications may recognize other environment variables to supplant the terminal description (see for example the discussion of COLORTERM), or even assign special meaning to different values of the $TERM environment variable, but ncurses uses only the terminal description.

My terminal shows some uncolored spaces

Even if your terminal supports the back color erase (bce) feature, you may still have problems using it.

We can blame the standard (ISO-6429 aka ECMA-48 aka “ANSI”). It is too simplistic, being descriptive rather than prescriptive. What is that, you might ask? It means that the standards writers used existing simplified descriptions by developers for the features rather than decomposing the features into distinct parts—and then making precise descriptions of those for testing compatibility of various implementations. The standard does not go into enough detail to prescribe a particular behavior.

Back color erase covers many (usually) related features, because there are many control sequences which might affect color, depending on the implementation. Here is a list—for each item there is probably at least one terminal type which differs from ncurses' assumptions. The list shows terminfo names with the standard control name, if any, in parentheses:

sgr0 (SGR 0)

The standard notes that this is "implementation-defined", and "cancels the effect of any preceding occurrence of SGR".

For practical purposes, ncurses has to assume that the cancellation applies to the normal video attributes such as bold, underline, reverse, but possibly not affecting color. Color came into the picture fairly late in the history of terminals, and there have been some (such as color_xterm) where SGR 0 had no effect on color.

ed (ED).

The erase-display feature is assumed to fill the cleared display (or part of the display) with the current background color.

Examples of terminals which do not do this include dtterm and teraterm 2.3.

el, el1 (EL)

The erase-line feature is assumed to fill the cleared line (or part of line) with the current background color.

There is no standard requiring that the behavior of EL and ED should affect color in the same way. It is a design choice; ncurses assumes this.

ech (ECH)

Erasing a character (which does not move any text on the screen) is assumed to fill the erased cells with the background color.

Rxvt does not do this, though its behavior matches most of the other assumptions.

For xterm, ECH is a VT220 feature. VT220s (and for that matter, none of DEC's VTxxx series before the VT525) did not implement ANSI color (or any style of color which you would use with ncurses). Rxvt's behavior was based on its developer's interpretation of DEC's documentation. XTerm's behavior on the other hand was based on (generally) agreeing with the developer of the Linux console.

ich, ich1 (ICH)

Inserting an empty cell at the current position is assumed to fill the empty cell with the background color.

Note that this control does not erase as one would infer from back color erase. But it creates an empty cell.

dch, dch1 (DCH)

Deleting the cell at the current position shifts the remainder of the line left, introducing an empty cell on the right end of the line.

Note that this control does not erase as one would infer from back color erase. But it creates an empty cell.

il, il1 (IL)

Inserting an empty line at the current position is assumed to fill the new empty line with the background color.

Note that this control does not erase as one would infer from back color erase. But it creates an empty row.

dl, dl1 (DL)

Deleting the line at the current position shifts the remainder of the screen up, introducing an empty row on the bottom of the screen.

Note that this control does not erase as one would infer from back color erase. But it creates an empty row.

ind, indn (nonstandard)

Scrolling the text up is assumed to fill the newly empty line (at the bottom of the display) with the current background color.

Indexing, aka “scrolling” is not covered in the standard. The behavior is completely implementation-dependent. This is a commonly used feature of XTerm.

There are subtle differences in behavior still possible, beyond filling and not filling. For instance, if the scrolling was in response to printing text which wrapped, that may or may not (depending on implementation) fill the newly empty line with the current background color.

For instance, a change in this area the Linux 2.6.26 console driver in April 2008 was reverted 6 months later. That was a bug for Linux console, because it broke more than 16 years of predictable behavior (since 0.96b in June 1992). Likewise it would be a bug for XTerm (and I have rejected patches to “improve” its behavior in this detail). But other terminals could do this intentionally as I observed of the “VT340” emulator bundled with the OnNet TCP/IP product of FTP Software in the mid 1990s.

The standard, by the way, takes it for granted that text will wrap and force the display to scroll. But it uses the terms “wrap” and “scroll” in only a few obscure comments, and doubtless left much leeway for implementation-dependent behavior.

XTerm of course implements scrolling because it was based on DEC's VT100, which does this. While a real VT340 did not support ANSI colors, one model of DEC's last terminal (the VT525) did. Its documentation indicates that it was released September 30, 1994 (more than two years after Linux's “new color model” was available). The DEC documentation mentions a setting (DECECM):

The Erase color selection controls the background color used when text is erased or new text is scrolled on to the screen. Screen background causes newly erased areas or scrolled text to be written using color index zero, the screen background. This is VT and DECterm compatible. Text background causes erased areas or scrolled text to be written using the current text background color. This is PC console compatible and is the factory default.

While Linux console (and XTerm) treat the insert/delete character/line operations as an erasure, according to more than one developer with firsthand experience, the omission by DEC in this summary was intentional: their terminals did not do this.

ri, rin (nonstandard)

Scrolling the display down is assumed to fill the newly empty line (at the top of the display) with the background color.

Again, there is no standard behavior. There are only design choices and assumptions.

csr (nonstandard)

Setting scrolling margins is assumed to limit erasures (and filling with background color) to those margins.

This is a commonly used feature of XTerm. Vertical scrolling margins are not the only feature of this sort. There are also horizontal margins (VT320) and origin mode (VT100) which can affect the ability to move the cursor—and erase text. But ncurses does little at present with those, since (aside from XTerm), most terminal emulators support those features poorly or not at all.

The ncurses library for the most part assumes that bce means the particular set of choices made for Linux console and xterm. Not all popular terminals match those choices. The standard is silent on “correct” behavior. There are two ways that ncurses may handle these differences:

  1. provide a terminal description which omits the specific capability which differs from the assumption, or

  2. in the library itself, be more pessimistic in optimizing the given capabilities.

The former is preferred, of course. The library should not be cluttered up with special cases.

My xterm program doesn't recognize color

Another specific problem lies with the terminfo description xterm. There are several xterm- and xterm-like terminfo entries in ncurses' terminfo database, corresponding to different terminal emulators. Only one is named “xterm”, and that corresponds to the standard one. A fresh install of ncurses provides a choice between the current and previous standard ones:

xterm-new
that is based on XFree86 xterm (plus updates since 2006, of course). See xterm's change log for details.
xterm-old
This is the same as xterm-r6, e.g., the X11R6 xterm. That program (X11R6 xterm) does not support ANSI text color.

For either flavor, your packager may have customized the definitions for backspace and delete to match the conventions of your system.

A fresh install of xterm on top of ncurses installs its terminfo entry as “xterm”.

Why doesn't ncurses use $COLORTERM?

$COLORTERM is an environment variable originally used by some applications developers who were constructing programs that run on rxvt, a terminal emulator, using the slang library:

Viewed as a fallback, $COLORTERM is perhaps acceptable (ncurses can be configured with built-in predefined terminal descriptions), but as a modifier to existing terminal descriptions it only leads to confusion, since most emulators that support color differ in minor details from the model which is supported by slang.

For example, dtterm nominally emulates a DEC vt220. Someone who knows this, but is also told that it supports color may (based on the usual misinformation available in newsgroups) try setting $TERM to “ansi”, “linux” or "xterm-color". (Use infocmp to see why this is uniformly bad advice). This figure illustrates what goes wrong when following that advice:

dtterm – incorrect handling of color

There is a dtterm terminfo entry which provides correct behavior.

Why not just use TERM set to "xterm-color"?

ncurses has a terminal description named xterm-color. Users assume that means it will work properly for “any” xterm. That is incorrect. It combines the simplest form of ANSI colors with the older X11R6 xterm. Originally, xterm-color corresponded to the color_xterm from the mid-1990s. That was superseded by XFree86 xterm in 1996. That is better than nothing, however using it in modern xterm (or anything accurately claiming to be compatible), these problems would occur:

Some terminal emulators may set this value; however it is unlikely that any current emulators implement this particular set of limited features. It is more likely that a more capable description exists or (given suitable documentation) that one could be constructed.

For instance, it has been reported that Mac OS X's bundled terminal emulator uses this value. However, reliable reports of its actual capabilities say that there are differences, which are addressed in ncurses as the nsterm entry. In this case, infocmp shows

comparing xterm-color to nsterm.
    comparing booleans.
        hs: F:T.
        km: T:F.
        npc: F:T.
        xon: F:T.
    comparing numbers.
        colors: 8, 16.
        ncv: NULL, NULL.
        pairs: 64, 256.
        wsl: NULL, 50.
    comparing strings.
        acsc: '``aaffggiijjkkllmmnnooppqqrrssttuuvvwwxxyyzz{{||}}~~', '``aaffggjjkkllmmnnooppqqrrssttuuvvwwxxyyzz{{||}}~~'.
        blink: NULL, '\E[5m'.
        civis: NULL, '\E[?25l'.
        clear: '\E[H\E[2J', '\E[H\E[J'.
        cnorm: NULL, '\E[?25h'.
        dsl: NULL, '\E]2;\007'.
        el1: NULL, '\E[1K'.
        enacs: '\E)0', '\E(B\E)0'.
        flash: NULL, '\E[?5h$<200/>\E[?5l'.
        fsl: NULL, '^G'.
        hpa: NULL, '\E[%i%p1%dG'.
        ich: NULL, '\E[%p1%d@'.
        ich1: NULL, '\E[@'.
        invis: NULL, '\E[8m'.
        is2: '\E[m\E[?7h\E[4l\E>\E7\E[r\E[?1;3;4;6l\E8', NULL.
        ka1: NULL, '\EOq'.
        ka3: NULL, '\EOs'.
        kb2: NULL, '\EOr'.
        kbs: '^H', '\177'.
        kc1: NULL, '\EOp'.
        kc3: NULL, '\EOn'.
        kend: NULL, '\E[F'.
        kent: NULL, '\EOM'.
        kf1: '\E[11~', '\EOP'.
        kf18: '\E[32~', '\E[22~'.
        kf2: '\E[12~', '\EOQ'.
        kf3: '\E[13~', '\EOR'.
        kf4: '\E[14~', '\EOS'.
        kfnd: '\E[1~', NULL.
        khome: NULL, '\E[H'.
        kich1: '\E[2~', NULL.
        kmous: '\E[M', NULL.
        kslt: '\E[4~', NULL.
        meml: '\El', NULL.
        memu: '\Em', NULL.
        op: '\E[m', '\E[0m'.
        rmam: NULL, '\E[?7l'.
        rs2: '\E[m\E[?7h\E[4l\E>\E7\E[r\E[?1;3;4;6l\E8', '\E>\E[?3l\E[?4l\E[?5l\E[?7h\E[?8h'.
        setab: '\E[4%p1%dm', '\E[%?%p1%{8}%<%t%p1%'('%+%e%p1%{92}%+%;%dm'.
        setaf: '\E[3%p1%dm', '\E[%?%p1%{8}%<%t%p1%{30}%+%e%p1%'R'%+%;%dm'.
        setb: NULL, '%p1%{8}%/%{6}%*%{4}%+\E[%d%p1%{8}%m%Pa%?%ga%{1}%=%t4%e%ga%{3}%=%t6%e%ga%{4}%=%t1%e%ga%{6}%=%t3%e%ga%d%;m'.
        setf: NULL, '%p1%{8}%/%{6}%*%{3}%+\E[%d%p1%{8}%m%Pa%?%ga%{1}%=%t4%e%ga%{3}%=%t6%e%ga%{4}%=%t1%e%ga%{6}%=%t3%e%ga%d%;m'.
        sgr: NULL, '\E[0%?%p6%t;1%;%?%p2%t;4%;%?%p1%p3%|%t;7%;%?%p4%t;5%;%?%p7%t;8%;m%?%p9%t\016%e\017%;'.
        sgr0: '\E[m', '\E[m\017'.
        smam: NULL, '\E[?7h'.
        tsl: NULL, '\E]2;'.
        vpa: NULL, '\E[%i%p1%dd'.

Additionally, Mac OS X 10.7 is reported to use xterm-256color as a default $TERM value. This differs from xterm-color in several ways, in particular, the support for bce. It also differs from the recommended nsterm-256color (infocmp reports 111 differences).

Why not just use TERM set to “xterm”?

It is easy to find people recommending just setting $TERM to “xterm”, noting that several developers have used that as a default value for their terminal emulators. However, this is usually (except for xterm itself) a bad idea. The reason that those terminal emulators use “xterm” is not because they actually match the behavior, but

However, “xterm” refers to a specific terminal emulator. Some of its details are widely emulated, while others (such as the function key definitions) are not.

Ncurses has provided accurate descriptions for the different terminal emulators for many years. While each terminal may implement escape sequences which are not in the others (none implement as much as half of xterm), what is important for curses applications is what can be represented in the terminal description. Using infocmp, here is the amount of difference seen by ncurses for commonly used terminal emulators as of January 2012:

Counting differences from xterm with infocmp
Description Count
ansi (for reference) 137
konsole 58
linux 123
mlterm 59
nsterm (Apple Terminal) 117
putty 128
rxvt 124
screen 107
screen.xterm-new 11
vte (e.g., gnome-terminal) 55
xterm-color 112
xterm-new (current standard) 0
xterm-old (old standard) 115
vt100 (for reference) 154

Noting that infocmp lists 182 capabilities for xterm-new, entries with more than a small number of differences demonstrate lack of compability of xterm "me-too's" versus xterm itself.

That only covers the features which are in the terminal description, and does not address differences between terminal emulators. For example, in mid-2017, an update to the xterm terminal description added the ECMA-48 REP (repeat character) control. It was part of xterm since January 1997, but a terminal description using the feature was part of xterm only (not ncurses). After adding it to ncurses, it was observed that:

Here are screenshots showing the problem, on the left correct and on the right incorrect:

picsmap – normal example using xterm
picsmap – broken example using VTE

Why not make “xterm” equated to "xterm-256color"?

It breaks things, in more than one way. Seriously, no one should be asking this question, but see Why not just use TERM set to “xterm”?. Still (writing in mid-October 2012), I see that the answer is needed.

First, some background is needed:

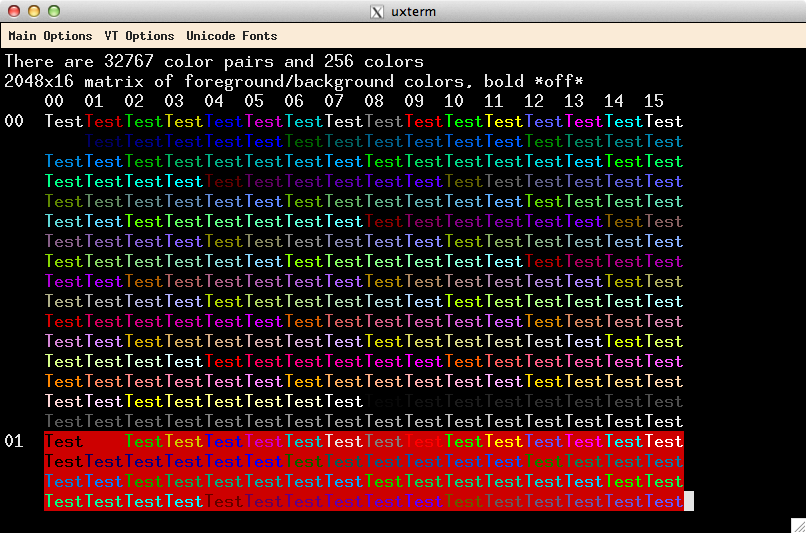

Here are screenshots showing the ncurses test-program with extended colors, using menu entry “C”, added in that time period. The first uses normal-weight text:

ncurses – screen from extended-colors tests

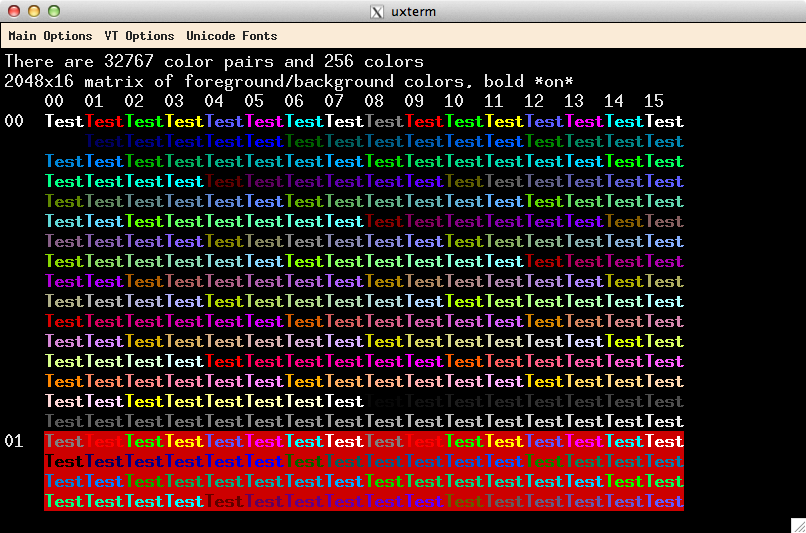

and the second uses bold font:

ncurses – screen from extended-colors tests (bold)

Other terminal emulators adapted the feature before any noticeable use by applications. After noticing these and verifying their behavior, I added corresponding entries to ncurses' terminfo.src file. Here are relevant changes:

88/256-color Terminal Descriptions
Date Change
1999/11/27 add xterm-88color, xterm-256color
2002-06-22 add rxvt-16color, ibm+16color
2005-01-29 update pairs for xterm-88color and xterm-256color to reflect the ncurses extended-color support
2005-02-26 add aixterm-16color to demonstrate 16-color capability
2006-02-18 add nsterm-16color entry
2006-04-22 add xterm+256color building block, and add gnome-256color, putty-256color, rxvt-256color
2007-07-14 add konsole-256color entry
2008-08-23 add Eterm-256color, Eterm-88color, and rxvt-88color
2009-10-03 add linux-16color; add ccc and initc capabilities to xterm-16color
2010-02-06 add mrxvt-256color
2010-06-12 add mlterm+256color entry
2012-03-31 correct order of use-clauses in st-256color
2012-08-11 add nsterm-256color, make this the default nsterm

Things started to change around 2005-2006 as you can see by looking at the dates in the table. Red Hat #175684 gives some clue, stating that the "next version of Emacs has support for 256 color terminals". Emacs on the console by the way uses termcap, not terminfo and certainly not (n)curses.

I chose to add new entries rather than change xterm (and others) because they are incompatible. There is more than one aspect to consider:

Although ncurses (starting with release 5.5 in 2005) can be configured to support 256 colors, it seems that no widespread distribution is using the extended colors feature (certainly not Red Hat or Debian — perhaps OpenSuSE does). That (and the extended mouse feature) are the main features for the "ABI 6", which could easily coexist with the usual "ABI 5" ncurses.

Without widespread use of ABI 6, there is no reason to change the primary flavor of any of ncurses' terminfo entries to the -256color or -88color flavor.

In the Debian distribution there was an attempt in 2008 on the part of the ncurses package maintainer to provide a migration path to ABI 6. That effort died, and does not at this time have a clear successor.

Just because it is not viable does not prevent others from assuming it is. For example:

Finally (August 2015), we have ncurses6 (ncurses 6.0). Releasing a new version is a different matter from getting it accepted and in wide use. Once packagers have been providing it for some time, the compatibility issues will be of less concern.

Why only 16 (or 256) colors?

Before getting to the point, some background is needed.

Curses applications run in terminals (or terminal emulators). They set colors for the screen and parts of it by sending additional characters (escape sequences) to the screen.

The ANSI standard described 8 colors, did not in any sense allude to more colors. This is a palette-based set of colors; there is no standard for how those colors are composed.

A few terminals recognize the aixterm 16-color extension (not part of any standard), e.g., xterm patch #39. Again, there is no agreement between different terminals on the actual colors used. (While xterm is configurable, some of the others are not).

Starting with xterm patch #111, there is the “xterm-256color” terminal type. Using SGR 38 and 48 in an arguably nonstandard manner (at the time there was no free access to ISO 8613-6), it provides a predefined palette of 256 colors which can be modified through escape sequences. With the terminals which imitate this (none matches xterm's behavior exactly), there are two problems:

These deficiencies are well known, easily demonstrated.

Sometime after xterm patch #111, a freely accessible version of ISO 8613-6 (ITU T.416) was made available. Some (mostly secondhand) discussion of the ramifications of this is in KDE #107487.

A small minority of terminals support an additional interpretation of SGR 38 and 48 alluded to in ISO 8613-6 as direct colour. The term “direct colour” has been interpreted as “24-bit mapping of RGB” (it is an interpretation, since the ISO standard referenced is not specific). What the standard actually says is:

The first parameter element indicates a choice between:

0 implementation defined (only applicable for the character foreground colour)

1 transparent.

2 direct colour in RGB space.

3 direct colour in CMY space.

4 direct colour in CMYK space.

5 indexed colour.

...

If the first parameter element has the value 5, then there is a second parameter element specifying the index into the colour table given by the attribute “content colour table” applying to the object with which the content is associated.

...

If the first parameter element has the value 2, the parameter elements 3, 4 and 5, are three integers for red, green, and blue colour components. Parameter 6 has no meaning.

There is no “24-bit” in the standard.

As is often the case with the ISO terminal standards, there is little or no prior art to use as a basis for standardization of these features. Accordingly, the existing implementations differ:

Konsole's README is not specific (mentioning only “3-byte RGB color space”), but the current source-code refers to truecolor which is different from direct color. See for example the discussion of Visual Types in the X11R5 library documentation (1991):

Using that escape sequence for TrueColor makes it a non-standard implementation. To be fair, KDE's 2006 changes to provide 256-colors (and incidentally direct color) did not hint at TrueColor. That came from other people. Konsole mentions “truecolor” only in one place, setting the environment variable COLORTERM from KDE #371919, copying John Davis' magic variable for overriding TERM, and triggering whatever special feature he has in mind for s-lang. With one value or another, it (and other magic variables to amend this) dates back to mid-1995 (rxvt-2.11). Here is the complete documentation in s-lang mentioning the variable as of February 2017:

  Of course not all terminals are color terminals. If the S-Lang global
  variable SLtt_Use_Ansi_Colors is non-zero, the terminal is assumed to
  be a color terminal. The SLtt_get_terminfo will try to determine
  whether or not the terminal supports colors and set this variable
  accordingly. It does this by looking for the capability in the
  terminfo/termcap database. Unfortunately many Unix databases lack this
  information and so the SLtt_get_terminfo routine will check whether or
  not the environment variable COLORTERM exists. If it exists, the
  terminal will be assumed to support ANSI colors and
  SLtt_Use_Ansi_Colors will be set to one.  Nevertheless, the
  application should provide some other mechanism to set this variable,
  e.g., via a command line parameter.

Beyond the issue of escape sequences, konsole and xterm use different library calls for implementing direct color. This makes no difference to an application which might use those escape sequences, but bears some comment:

The implication of the direct colour feature is “lots of colors”. On the surface, that may seem attractive. However, there are several considerations:

To answer the question, bear in mind that this is an area of special interest to only a handful of developers. End-users read “16 million colors” and uncritically accept arguments that they can effectively use this. However, there are only (at most) a few thousand characters on a terminal's screen at a time. That number of colors exceeds by a couple of orders of magnitude the ability of anyone to discern the differences and rely on those distinctions to aid them in viewing text.

Moving past the first couple of points, the availability of direct color depends on how the application uses the information. As a terminfo description, that works for applications which use the terminal database directly. The principal ones which come to mind are text editors (emacs and vi-clones). Generally their developers have chosen to make their task more difficult by remaining with termcap (which cannot express the relevant escape sequences). So they incorporate some hard-coded behavior. For instance, in a change to emacs in February 2017, the developer

Working through these obstacles, it is possible to “use” termcap to provide “lots of colors” without affecting the ncurses library. Termcap applications do not use much of ncurses; nor do their developers contribute significantly to ncurses. The emacs workaround was unsuitable for ncurses because emacs interprets the data in its own way, and displays the result independently of ncurses.

Some mailing-list comments indicate that the existing capabilities are not well-understood by developers, e.g., this discussion in October 2013. Taking the discussion into account, consider the linux-c terminal description dating from 1996. That sets up a palette using a color index value mapped to R/G/B components. Other longstanding uses in ncurses include these:

linux-c-nc, putty, xterm-16color, and xterm+256color

Some additional comments on mapping colors using initc and initp are found in this discussion.

Applications which use ncurses are a different matter. Unlike termcap applications, curses libraries (and analogous ones such as s-lang) use combinations of the terminal capabilities to allow their applications to work on a wide variety of terminals. There are a few limitations, due to the early implementation of terminfo:

Using the ncurses 5 ABI, you have available 16 colors, or 256 pairs of colors. Using the ncurses 6 ABI, you have 256 colors, or 32767 pairs (the limit for a signed 16-bit number). That limit is good enough for realistic applications, which could not have that many character cells on a screen simultaneously (unless of course, using 1-pixel fonts to pretend to draw graphics, e.g., AA-lib). Since ncurses is used to draw text, that is not a valid issue.

S-lang does not implement color-pairs (or padding, etc.), However (reading the source code), it also is limited by the terminal descriptions, using a maximum color index value 32767 (15-bits—signed short). No method for changing 15 into 24 was noted in this discussion. However, that led to a bug report with a patch which isn't fully “ABI compatible”. John Davis was able to work around the obvious problems in this patch by splitting up the extended color field to use some space in his library's data structure. Otherwise, users would have had to recompile their applications to use the library, since the patch altered these features of the interface:

#define SLTT_BOLD_MASK  0x01000000UL
#define SLTT_BLINK_MASK 0x02000000UL
#define SLTT_ULINE_MASK 0x04000000UL
#define SLTT_REV_MASK   0x08000000UL
#define SLTT_ALTC_MASK  0x10000000UL
#define SLTT_ITALIC_MASK  0x20000000UL

If you read the source code, you will see that he did not solve the problem of changing 15 into 24 (as of February 2017, it still used a signed 16-bit limit for the number of colors).

No matter how one uses the limits based on the terminal database, scaling is needed to map onto the actual device.

Bypassing the limits which can be derived from the terminal database (and veering off into the swamp of hard-coded behavior), the idle spectator might ask “why not add a special ad hoc interface to (somehow) just do it?” One of VTE's developers asked for that (see mailing list thread from January 2014).

The problem is that you cannot “just do it”—both ncurses and s-lang do optimization to address their legitimate users (those who are using the superior performance due to working with characters, especially via remote connections). They have longstanding APIs which expose some of the related information. Adding an ad hoc interface will either break compatibility, or require duplicating information. Either way, most of the existing users would be adversely affected.

Some hint of this is given in GNOME #704449. Given the source of the comment, the effect is understandably understated. The usual reason given for wanting this feature has been for making pretty color schemes for text editors (e.g., this and this).

More generally, the way to “solve” the problem would be to abandon compatibility with X/Open Curses, using int where short is now used, and provide a new (incompatible) terminal database format to store bigger numbers. Incidentally, this would break applications which use the existing terminal database format, such as s-lang.

This extended item was prompted by an advertisement early in 2014 posted to the ncurses mailing list. That was while I was working on versioned symbols, needed to gain packager's acceptance for ncurses6. A hypothetical future release aimed solely at providing “lots of colors” could do each of the items mentioned in the previous paragraph. But it had no place in the ncurses6 plan, which required only recompiles, no source-changes.

Beginning with a fallacious premise (using a source known to be erroneous), its authors (the two individuals mentioned in this thread) selected specific instances in an attempt to persuade the reader that a majority of terminals implement TrueColor (“16 million colors”), and has a discussion page devoted to expanding this:

Much of the discussion on the page is in the same vein, e.g., talking about standards, while at the same time discarding the technical details of ITU T.416 and ECMA-48 which began this story.

Besides the discussion on that page, there are several related items such as KDE #371919, repeating some of the invented facts from that page, e.g.,

Unfortunately the maintainer of ncurses and terminfo is not interested at all in adding this possibility to terminfo, see e.g. https://lists.gnu.org/archive/html/bug-ncurses/2016-08/msg00036.html.

After the release of ncurses 6.1, the page's authors made minor, but not substantiative changes. In contrast, the changes made for ncurses 6.1 to implement and integrate extended numbers (and colors) took about a year to develop (see this page for the full diffstat):

# 602 files changed, 54948 insertions(+), 35233 deletions(-)

Those people are not contributors to ncurses. While comments are useful (sometimes) none of it was written by them.

Without significant revision, there is nothing more to discuss.

Ncurses resets my colors to white/black

This is the way SVr4 curses works. From the XSI Curses specification

The start_color() function also restores the colors on the terminal to terminal-specific initial values. The initial background color is assumed to be black for all terminals.

If your terminal description does not contain the orig_pair or orig_colors capability, you will be unable to reset colors to the pre-curses state. This happens, for example, with aixterm.

However, if your terminal does support resetting colors to a default state, ncurses will use this when exiting Curses mode. Terminal types that do this include the Linux console, rxvt and the XFree86 xterm.

Ncurses 4.1 provides an extension use_default_colors() which allows an application running on a terminal which supports resetting colors to mix the default foreground and background colors with the 8 defined curses colors.

Why are red/blue interchanged?

You may notice if you are porting an application from SVr4 curses to ncurses (or the other way), that some versions of ncurses have some pairs of colors interchanged with respect to SVr4 curses. This is a bug in ncurses (sorry). Someone made an error translating terminal descriptions, and confused the setaf/setab terminal capabilities with the setf/setb capabilities.

The 8 colors black, red, green, yellow, blue, magenta, cyan, white are coded in the ANSI (setaf/setab) convention with red=1, green=2 and blue=4, while the older (setf/setb) uses red=4, green=2 and blue=1. SVr4 curses accommodates either, interchanging colors in the setf/setb to match the setaf/setab style. Ncurses' terminfo database incorrectly renamed the setaf/setab capabilities to setf/setb, making it incompatible with the SVr4 curses library.

This was corrected in ncurses 4.1, but incorrect in all preceding versions.

Other Display Problems

Line-drawing characters come out as x's and q's

The x's and q's correspond to a table (from terminfo/termcap) which tells ncurses how to map the “alternate” character set to the terminal's set of graphic characters. The reference for this table comes from the vt100. If the unmapped characters appear, then the terminal emulator does not recognize the escape sequence for switching between normal and alternate fonts that is given in the terminfo description.

There are several cases of note:

For the first case, you simply have to find the correct terminfo description. Fixing the latter is harder, since the damage is done outside ncurses. (Though one can easily make things compatible enough that this particular issue would never appear, that style of solution is not deemed proper by some coders).

The normal ncurses libraries support 8-bit characters. The ncurses library can also be configured (--enable-widec) to support wide-characters (for instance Unicode and the UTF-8 encoding). The corresponding wide-character ncursesw libraries are source-compatible with the normal applications. That is, applications must be compiled and linked against the ncursesw library.

The ncurses 5.3 release provides UTF-8 support. The special cases of Linux console and screen were addressed in development patches completed at the end of 2002.

Line-drawing characters come out as Latin-1 characters

Those capital A's with dots on top. Yes, that is almost always a mismatch with the terminfo description.

There are some special cases such as Tera Term which are related to the font.

Line-drawing characters do not appear

There is no character at all where the line-drawing should appear, and other characters may be shifted around the screen. This may happen on the Linux console, but also on some other terminal emulators. The line-drawing characters do not appear because the terminal emulator is treating them as illegal characters.

ncurses starts by assuming that the terminfo is correct, and overrides it for some special cases which are known to misbehave. See the discussion of NCURSES_NO_UTF8_ACS in the ncurses manpage for details.

Why does my cursor blink in Emacs?

Depending on Emacs, or other programs, the answer differs. Most often this question is raised by people using the Linux console.

There are three capabilities defined in terminfo which affect the cursor:

Terminfo Cursor Capabilities
Full name Terminfo Termcap Description
cursor_invisible civis vi make cursor invisible
cursor_normal cnorm ve make cursor appear normal (undo civis/cvvis)
cursor_visible cvvis vs make cursor very visible

The three capabilities appear in the terminfo database 128, 178 and 103 times respectively. Some of those terminfo entries are building blocks. For the entries reported by toe, there are 670 which modify the cursor, out of 1629 entries. Some of these allow only between invisible/normal or normal/visible. There are 159 which allow all three possibilities, as well as 27 which allow only one choice.

The cursor blinks because the application (Emacs for instance) uses the cvvis capability. “Very visible” for a terminal cursor generally means that it blinks. Various tradeoffs are possible, depending on the terminal between underline, block, blinking.

Applications modify the cursor either via curs_set (in ncurses) or by sending the appropriate escape sequence to the terminal using termcap or terminfo calls. While curs_set refrains from substituting one escape sequence for another missing one, this is not true of termcap/terminfo applications. Frequently they replace a missing cvvis with an available cnorm. After a while, the programmers forget the difference, and surprise their users when someone upgrades a terminal description.

The Linux console tie-in happened with ncurses in 1999, by adding cvvis to the “linux” terminal description.

Outside of Emacs, the replacement of a missing cvvis with cnorm is the most common cause of surprise.

But Emacs is different. It intentionally uses the "very visible" blinking cursor by default. There is documentation here. The earliest available version of the code from 1991 uses TS_visual_mode in this way.

Why does (fill in the blank) happen when I use two threads?

If you have a program which uses curses in more than one thread, you will almost certainly see odd behavior. That is because curses relies upon static variables for both input and output. Using one thread for input and other(s) for output cannot solve the problem, nor can extra screen updates help. This FAQ is not a tutorial on threaded programming.

Starting with ncurses 5.7, this implementation of curses provides the ability to configure and compile the library to help solve the problem by:

Almost all programs can be recompiled to use the “ncursest” or “ncursestw” libraries. Just recompiling is not enough to make a program thread-safe. As usual, some (re)design effort is probably needed.

The test-programs provided with ncurses (ncurses-examples) include a few which demonstrate this alternate configuration of the library: ditto, rain, worm.

Keyboard Problems

My cursor keys do not work

For instance, you may press the up-arrow and see “OA” or “[A”, rather than having your program recognize the up-arrow.

The terminal description may be incorrect, or the program may not be making proper use of it. ncurses (and other programs which use terminal descriptions) simply match the characters sent by the terminal against a list of strings defined in the terminal description.

vt100's can send different strings for cursor-keys (and keypad-keys) depending on how they are initialized. Terminal emulations which provide vt100 functionality behave the same way. There are two modes:

normal mode
This corresponds to the power-up state of the terminal. Cursor keys send escape sequences (strings beginning with the ASCII escape character) that mimic cursor-movement control sequences. Those begin with escape [. An up-arrow is escape [ A (also expressed as CSI A.
application mode
This is the programmed mode of the terminal. Cursor keys send escape sequences that can be easily distinguished from cursor-movement control sequences. Those begin with escape O. An up-arrow is escape O A (also expressed as SS3 A.

The terminal description describes only one mode. Usually that is the application mode.

The terminal description tells how to initialize the terminal, e.g., to make the cursor-keys send application mode escape sequences:

To accommodate all types of terminals, the convention was that a program would initialize the cursor keys when it needed them, i.e., to use the programmed mode of the terminal. That works well for full-screen programs. Terminal descriptions (usually) describe the application mode for this reason.

This convention does not work well for command-line programs, which do not initialize the terminal. Keys which differ between normal and application modes are not available for programs which do not initialize the terminal.

For example, the readline library (which was originally hardcoded, and did not use termcap or terminfo), exploited the feature of vt100's that their cursor-keys transmit something in normal mode.

The readline library (which is used by bash) did this for several years before someone connected it to a termcap library. Around that point, someone made a terminal description for the Linux console which “solved” the problem of initializing the terminal for bash by not initializing it at all. Cursor keys always send normal-mode strings with this arrangement.

Granted, that works—provided that the terminal is initialized consistently. If your terminal happens to “solve” the problem in a different way, e.g., by starting in application mode, and if your environment sets TERM to “linux”, you may have problems with your cursor-keys.

Alt-keys do not work in bash

Depending on the application, users expect an “alt” key to do one of two things:

xterm supports both features, e.g., with the eightBitInput and related resources.

Bash users have an extra problem in xterm when using a recent terminal description (since xterm patch #216). For completeness, I noted in the terminal description how an application can set/reset “meta” mode. It turns out that bash turns on meta mode if it is available. It is not an optional feature in bash; bash's developers assumed that you would use it. That is an odd assumption, since the feature is rarely implemented. There are (counting xterm) only three terminal descriptions in ncurses' terminal database providing this (the low-level blocks for Ann Arbor, SCO, and XTerm).

Making it configurable was proposed in this bug report. Earlier, bash's maintainer had expressed reluctance to address the issue. However, bash 4.1 added an "enable-meta-key" feature, dated 9 October 2009. That makes it possible for users to disable it.

My home/end keys do not work

This is usually due to an incorrect terminal description. When it is not, it is due to the terminal emulator itself.

Application developers tend to hardcode references in their programs to the “home” and “end” key, forgetting that the presence of any particular function key depends on the terminal.

Part of the problem with terminal descriptions is due to the way xterm's terminal descriptions are used in ncurses. Because xterm emulates a VT220, the terminal descriptions provided with it follows the DEC keyboard convention, which does not provide home/end keys. Rather, it provides find/select keys. See for example the discussion of function keys and keypad.

On the other hand, the descriptions in ncurses reflect the Sun and PC keyboards which many people use. They define home/end keys for xterm.

However, some packagers for ncurses have pasted xterm's terminfo descriptions into the ncurses distribution. The effect is to remove the home/end key definitions from ncurses.

The problem is easily fixed by ignoring the packager's improvements and reinstalling the ncurses terminfo database. This section tells where to get it.

How can I use shift- or control-modifiers?

The standard response is "curses doesn't do that".

There are workarounds. Some explanation is needed first.

Most implementations of curses work with terminals that use serial communication. Generally those were inexpensive. Adding keys to the keyboard was probably less expensive than adding logic to handle different types of modifiers (such as shift). Terminals that could send different types of modifiers used to be rare.

However, the IBM PC provided a widely available platform with a keyboard that could provide modifier information. On the other hand, there was no standard protocol for sending the information on a serial line.

Most of the activity in exploiting this platform consisted of ad hoc implementations for computer consoles, such as for SCO, OS/2, etc., which associated the control-, shift- and alt-key modifiers with function-key numbering. That is, rather than attempting to extract information on the modifiers from function key expressed as a character string, the various combinations are numbered (using function-key number, multiplied by a code corresponding to the modifiers) and associated with the numbered function keys in the termcap/terminfo description.

For example, the scoansi description encodes the modifiers by an arbitrary sequence from the possible final characters for an ANSI control, e.g.,

normal
kf1=\E[Mkf10=\E[Vkf11=\E[Wkf12=\E[Xkf2=\E[N,
kf3=\E[Okf4=\E[Pkf5=\E[Qkf6=\E[Rkf7=\E[Skf8=\E[T,
kf9=\E[U,
F13-F24 are shifted F1-F12
kf13=\E[Ykf15=\E[akf16=\E[bkf17=\E[ckf18=\E[d,
kf19=\E[ekf20=\E[fkf21=\E[gkf22=\E[hkf23=\E[i,
kf24=\E[j,
F25-F36 are control F1-F12
kf25=\E[kkf26=\E[lkf27=\E[mkf28=\E[nkf29=\E[o,
kf30=\E[pkf31=\E[qkf32=\E[rkf33=\E[skf34=\E[t,
kf35=\E[ukf36=\E[v,
F37-F48 are shift+control F1-F12
kf37=\E[wkf38=\E[xkf39=\E[ykf40=\E[zkf41=\E[@,
kf42=\E[[kf43=\E[\\kf44=\E[]kf45=\E[\^kf46=\E[_,
kf47=\E[`kf48=\E[{,

Some combinations are missing (kf14 for instance corresponds to a back-tab).

A different scheme is used by rxvt (which was influenced by xterm and different hardware portability tradeoffs):

kf1=\E[11~kf10=\E[21~kf11=\E[23~kf12=\E[24~,
kf13=\E[25~kf14=\E[26~kf15=\E[28~kf16=\E[29~,
kf17=\E[31~kf18=\E[32~kf19=\E[33~kf2=\E[12~,
kf20=\E[34~kf3=\E[13~kf4=\E[14~kf5=\E[15~,
kf6=\E[17~kf7=\E[18~kf8=\E[19~kf9=\E[20~,
kf21=\E[23$kf22=\E[24$,
kf23=\E[11\^kf24=\E[12\^kf25=\E[13\^kf26=\E[14\^,
kf27=\E[15\^kf28=\E[17\^kf29=\E[18\^kf30=\E[19\^,
kf31=\E[20\^kf32=\E[21\^kf33=\E[23\^kf34=\E[24\^,
kf35=\E[25\^kf36=\E[26\^kf37=\E[28\^kf38=\E[29\^,
kf39=\E[31\^kf40=\E[32\^kf41=\E[33\^kf42=\E[34\^,
kf43=\E[23@kf44=\E[24@,

The pattern is not so obvious here. The developer who assigned the numbering chose certain combinations from a table which was too large to map into the available 60 numbered keys. Here is the complete table, noting that F1 is the X11 code which is not necessarily synonymous with kf1:

Rxvt Function-Key Modifiers
X11 Key Normal Shift Control Shift+Control
F1 ESC [ 11 ~ ESC [ 23 ~ ESC [ 11 ^ ESC [ 23 ^
F2 ESC [ 12 ~ ESC [ 24 ~ ESC [ 12 ^ ESC [ 24 ^
F3 ESC [ 13 ~ ESC [ 25 ~ ESC [ 13 ^ ESC [ 25 ^
F4 ESC [ 14 ~ ESC [ 26 ~ ESC [ 14 ^ ESC [ 26 ^
F5 ESC [ 15 ~ ESC [ 28 ~ ESC [ 15 ^ ESC [ 28 ^
F6 ESC [ 17 ~ ESC [ 29 ~ ESC [ 17 ^ ESC [ 29 ^
F7 ESC [ 18 ~ ESC [ 31 ~ ESC [ 18 ^ ESC [ 31 ^
F8 ESC [ 19 ~ ESC [ 32 ~ ESC [ 19 ^ ESC [ 32 ^
F9 ESC [ 20 ~ ESC [ 33 ~ ESC [ 20 ^ ESC [ 33 ^
F10 ESC [ 21 ~ ESC [ 34 ~ ESC [ 21 ^ ESC [ 34 ^
F11 ESC [ 23 ~ ESC [ 23 $ ESC [ 23 ^ ESC [ 23 @
F12 ESC [ 24 ~ ESC [ 24 $ ESC [ 24 ^ ESC [ 24 @
F13 ESC [ 25 ~ ESC [ 25 $ ESC [ 25 ^ ESC [ 25 @
F14 ESC [ 26 ~ ESC [ 26 $ ESC [ 26 ^ ESC [ 26 @
F15 (Help) ESC [ 28 ~ ESC [ 28 $ ESC [ 28 ^ ESC [ 28 @
F16 (Menu) ESC [ 29 ~ ESC [ 29 $ ESC [ 29 ^ ESC [ 29 @
F17 ESC [ 31 ~ ESC [ 31 $ ESC [ 31 ^ ESC [ 31 @
F18 ESC [ 32 ~ ESC [ 32 $ ESC [ 32 ^ ESC [ 32 @
F19 ESC [ 33 ~ ESC [ 33 $ ESC [ 33 ^ ESC [ 33 @
F20 ESC [ 34 ~ ESC [ 34 $ ESC [ 34 ^ ESC [ 34 @

That is, the final character is again used to encode the modifiers. There are several terminals which use different final-character encoding schemes, e.g., dg (Data General), interix, and those based on ansi.sys or cons25.

xterm uses a different scheme, encoding the modifiers as a parameter. There are many combinations available. Here is a short example:

kf1=\EOPkf13=\E[1;2Pkf25=\E[1;5Pkf37=\E[1;6P,
kf49=\E[1;3Pkf61=\E[1;4P,

All of that focuses on function keys. There are other special keys on the IBM PC keyboard, e.g., the editing keypad and cursor keys.

Here, conventional terminfo/termcap provides just a little help, but providing names for some of the shifted keys. xterm defines some of these:

kDC=\E[3;2~kEND=\E[1;2FkHOM=\E[1;2HkIC=\E[2;2~,
kLFT=\E[1;2DkNXT=\E[6;2~kPRV=\E[5;2~kRIT=\E[1;2C,

But xterm can also work for control-, alt-, and meta-modifiers. None of those are defined in conventional terminfo/termcap.

ncurses allows you to define extended descriptions, i.e., to make up your own names. The xterm terminfo descriptions do just that: they define names for the modified cursor- and editing-keypad keys which are just the xterm modifier code appended to the name for the shifted key. For example, the delete-key (kdc) can be represented as shown below:

Example of Xterm Extended Key (DC)
Xterm Code Modifier Extended Name
1 (or missing) Normal kdc
2 Shift kDC
3 Alt kDC3
4 Shift + Alt kDC4
5 Control kDC5
6 Shift + Control kDC6
7 Alt + Control kDC7
8 Shift + Alt + Control kDC8

Other terminal descriptions can be (and in ncurses, have been) modified to use this naming scheme for extended keys:

By adding these to the terminal description, curses applications will see the keycode rather than individual characters when processing keypad mode.

There are a few limitations though:

How can I see what my keyboard sends?

All of the trouble-shooting for keyboard problems relies on you being able to see what the keys send.
You can do this in more than one way:

That makes it possible to see what your keyboard sends. There is a corresponding problem seeing what programs actually send to your terminal.

Using Hardware (Real) Terminals

Why does reset log me out?

This is a limitation of real hardware terminals: resetting them will break the communications to the host temporarily. Some terminal interfaces will tolerate this. Others (most) will interpret this as hanging up, and log you out.

The reset is specified in the terminal description, e.g.,

rs1=\Ec,

That is the hardware reset escape sequence for vt100. Some terminals provide enough control over their features that a very complicated substitute could be concocted for the normal reset which does not perform a hardware reset. In practice, this is not easily done.

Why do I get trash on the screen?

This is a problem of real hardware terminals. Cheap terminals and cheap interfaces do not do sophisticated flow control (e.g., XON/XOFF). Instead, they rely on a host which does not send them characters too rapidly. Remote terminal servers may provide flow control; direct console or serial port connections often do not. (If you are asking this question, you probably have inexpensive hardware).

Terminfo descriptions designed for these inexpensive terminals have delay times specified in the control sequences which take extra time, such as clearing the screen. For example, the vt100 description tells the application to wait 50msec after clearing the screen:

clear=\E[H\E[J$<50>,

Note: the slang library does not implement delay times, and is not suitable for applications which require direct connection to a hardware terminal. The author of that library states that no one uses hardware terminals any more, suggesting that I add this information to the FAQ.

Interaction with Other Programs

Redirecting I/O to/from a Curses application

In principle, you should be able to pipe to/from a curses application. However, there are caveats:

What about readline?

The readline library appeals to a number of people, who would like to use it within an ncurses application.

At first glance—but only for that instant—it appears that the library is flexible enough to substitute a different display driver, e.g., to output via something other than tput() and putc(). Close reading of its display.c file shows this is ultimately futile. Quoting (Brian Fox's comment from the early 1990s, still present in readline 6.1 in 2010) from that file gives some insight:

/* This is the stuff that is hard for me.  I never seem to write good
   display routines in C.  Let's see how I do this time. */

John Greco suggests a different approach here, which discards ncurses' input functions (such as wgetch), using rl_callback_read_char to fill the rl_line_buffer array. That can be printed using ncurses.

Problems with Output Buffering

Ncurses shares with SVr4 curses a limitation which is documented in the C standard. To attain good performance, they buffer output data, e.g., with the setvbuf function (or equivalent, depending on the platform). The performance gain is noticable.

However, if your application spawns a subprocess, it will inherit the output stream from ncurses—still buffered. On several platforms this results in odd behavior, since normally the standard output is line buffered, making the output flushed at the end of each line. To solve this problem, your application should disable setvbuf before invoking the subprocess and restore it when resuming. That is, it should, but often cannot—that is the problem. The standard says that setvbuf must be called only after opening a stream and before performing any reads or writes with that stream.

If your application calls initscr, it uses the standard output, which ncurses assumes has not been written to, to which ncurses then applies buffering. (Caveat: The standard writers neglected to provide a mechanism for determining if the stream is indeed buffered). Adding a call to setvbuf to disable buffering may work or not. In at least one implementation, the C library continues using the buffer after the buffer is disabled, even if an fflush is first given. That is, it will produce a core dump.

The fix? Use newterm to initialize ncurses and manage the input and output streams yourself. For instance, you may simply open /dev/tty for input and output, and leave the standard input and output alone.

Mice and Windows

I can't cut/paste in xterm

This is a general FAQ relating to xterm. When an application sets xterm to any of its mouse tracking modes, it reserves the unshifted mouse button clicks for the application's use. Unless you have modified the treatment of the shifted mouse button events (e.g., with your window manager), you can always do cut/paste by pressing the shift key while clicking with the mouse.

Ncurses sets the mouse tracking mode as a result of your application's calls to mousemask, which is an extension.

Handling SIGWINCH (resize events)

It is possible to make an application resize when running in a windowing environment (e.g., in an xterm). This is not a feature of standard SVr4 curses, though some curses implementations (e.g., HP-UX) support this.

Within ncurses, there are two ways to accomplish this. One relies on side-effects of the library functions, and is moderately portable. The other is an extension to SVr4 curses.

Ncurses 5.0 can be configured to establish its own SIGWINCH hander. In this configuration, the wgetch function returns a special keycode KEY_RESIZE when a resizing event is detected. The signal handler also sets a flag which the library checks with is_term_resized, then calls resizeterm (Caveat: malloc and free are not guaranteed to be safe for use in a signal handler).

There is a known problem using bash's checkwinsize misfeature. See Novell #828877, as well as the thread starting here on bug-bash, and of course the manpage for use_env. Shells which set LINES and COLUMNS might have been a good idea in 1995, but not as a rule more recently than that.

The SIGWINCH signal was a feature of SunOS (since 1984) rather than AT&T SystemV. SunOS also provided an ioctl call which could be used to obtain the terminal window's current size. Both aspects (SIGWINCH signal and winsize structure) were later incorporated in 4.3BSD (early 1985). Other systems, e.g., Apollo provided similar capabilities, independently of SunOS. The ncurses resizeterm function is based on an earlier function resizewin, written in April 1988 using the Apollo calls, and later modified to work with SIGWINCH.

Though long supported on Unix-like platforms, SIGWINCH has not been standarized. Writing in July 2020 (more than 35 years later), these related standardization features are expected to be in P1003.1 issue 8 (October 2022):

Linking with GPM (Linux console mouse library)

Ncurses works correctly with the Linux GPM (general purpose mouse) library. However, early on some distributors tampered with the library, making it not generally useful, by linking in a portion of the BSD curses library to satisfy references for Gpm_Wgetch. That prevented one from using ncurses' GPM support.

GPM provides limited support for xterm mouse control sequences. This is implemented in GPM_Wgetch, which makes some unreasonable assumptions about the curses library's internal behavior of wgetch. In particular, GPM interferes with the logic which combines characters into function-key codes. GPM also uses as part of its xterm control sequences a pair which save/restore the mouse mode (and are not actually handled by any of the other terminal emulators).

On writing this faq in 1999, there were no applications that used this misfeature. Later (in 2005) there were still no curses applications which do, however w3m contains some contorted code to exploit this, by abusing the library interface: it defines several symbols that conflict with ncurses to intercept calls to wgetch, while using other symbols from ncurses as is. (There is also documented Gpm_Getch, but it is no longer present in the GPM source code).

Since version 1.10 GPM comes with a configure script, which allows the system builder to suppress this from the shared library, e.g.,

configure --without-curses

You should verify that the shared library does not use the symbol wgetch. Version 1.16 lacked the configure script option to suppress this hook; removing libcurses.o from the list of objects in GPM's Makefile worked just as well. Version 1.17 built correctly when I tested it, however, though the changelog does not mention the change. It would seem that the issue would be long resolved. However, it is not.

Starting with ncurses 5.5, the recommendation is still the same: build the GPM library without the Gpm_Wgetch interface. ncurses 5.5 can dynamically load the GPM library on Linux, and that eliminates any reason to have the ncurses library built with an explicit dependency upon GPM.

Some of the GPM fixes are based on a quirk of the library: if Gpm_Open is called when the TERM environment variable contains “xterm”, it opens a connection which returns the raw character stream which might contain mouse escape sequences. It returns a special file descriptor (-2) which is easy to overlook in the normal checks on file descriptors which are valid only when positive. For quite a while as well, GPM and X could not co-exist. It was not uncommon to have some safeguards to turn off GPM when starting X. By around 2005, some fixes had been made to the X server to allow the two to run concurrently. That exposed some problems in ncurses which had not properly checked for the special file descriptors, and affected programs running in an xterm, e.g., dialog and ded which start/stop the mouse interface. For these, the GPM server would ultimately be locked up and not return from a call to Gpm_Open.

Problems with Packages

Comments on packages

Packages are a good thing. Sometimes.

Not all distributions clearly distinguish between release versions of software, betas and alpha versions. (To be fair, not all producers distinguish these properly).

Ncurses 4/4.2/5.0

Ncurses 5.0 was not compatible with ncurses 4.2, however I frequently saw people advising others to “fix” programs that require the older library to make a symbolic link from the newer name to the older. That only works for simple applications, and not all of those.

Ncurses 4.0 and 4.2 were released respectively before and after X/Open finished their curses specification. Both were based on the draft specifications from 1995 and 1996. The released specification (available in 1997) differs in several places, mainly in the provisions for multi-byte character sets.

Late in 1998 through early 1999, I made corrections to the development version of ncurses to align it to the X/Open specification. Near the end of this, I realized that I had an opportunity to add an extension to ncurses which would make the terminfo format extensible, just as termcap is. It required a change to the term.h header. to allow the arrays for terminfo booleans, numbers and strings to be set at runtime. This had the effect of making programs not binary-compatible, but that was not a drawback, since it was already conceded that ncurses 5.0 would not be binary-compatible with ncurses 4.2 because of the X/Open changes. Only a few applications use term.h, and those would be fixed by a recompile.

One problem: Redhat packaged development versions of ncurses without distinguishing them from the release versions. We discussed the matter with them, but they did not wish to cooperate. Redhat 6.0 was released with almost all of the interface changes that comprised ncurses 5.0—as "ncurses 4.2". When ncurses 5.0 was released, they did not bother to read the release notes, and released that as "ncurses 4.2". Somewhat later, they added to the confusion by calling it "ncurses 4.0". Until mid-2001, much of this information was still available in Bugzilla.

Redhat continues to distribute development versions of ncurses without distinguishing between release- and development-versions.

rxvt's $COLORFGBG variable

Ncurses 5.2 added an experimental feature: support for rxvt's $COLORFGBG variable. This is a feature which tells the application what colors the default foreground and background correspond to. It is specific to rxvt: in general other terminal emulators assign colors for foreground and background which do not necessarily correspond to any of the ANSI colors. This feature was enabled in some rpm-based distributions, e.g., Mandrake and Redhat.

It worked for the configuration on which I tested, however there are two configurations. The format of the $COLORFGBG variable is not documented; you must read the C code to find how rxvt sets it. The two configurations correspond to whether the xpm library is used or not. If xpm is used, ncurses 5.2 sees the wrong value for the background, and display black-on-black.

Quick fix: unset $COLORFGBG.
Better fix: update the ncurses rpm (Mandrake did).

Where is rxvt-unicode?

See the rxvt(-unicode) in ncurses page.

How do I report bugs?

First, check to see if your problem is addressed in this FAQ. Read the INSTALL document, if you have not done so. However, it may not be a known problem. Read on.

How should I report bugs?

Contact the current maintainers at bug-ncurses@gnu.org.

To join the ncurses mailing list, please write email to bug-ncurses-request@gnu.org containing the line:

subscribe <name>@<host.domain>

This list is open to anyone interested in helping with the development and testing of this package.

There is an archive of the mailing list here:

http://lists.gnu.org/archive/html/bug-ncurses (also https)

Otherwise, you may email directly to the maintainers, currently:

If you send email only to one of the other authors, I will probably not see it. I prefer that bug reports go to the mailing list. (Occasionally I get private email cc'ing Zeyd and Eric, neither of whom has contributed since before 2000).

I get some of my bug reports via the ncurses mailing list, some via bug-tracking systems, and the others via direct email.

The mailing list is useful. When it began, more than half of the changes that were introduced without review in the ncurses mailing list introduced a bug. So I find it necessary to review proposed changes.

Refer to the standard reporting/patching procedures, for a start.

When sending patches, specify the version of ncurses that you are patching. All versions of ncurses have major, minor and patch-date numbers. Those may not be the same as a package revision number; it helps to identify that, so that I can relate it to the source.

There is a defunct "help-ncurses" mailing list, which I requested to be shut down long ago. I am not subscribed to that list.

How do I report problems building ncurses?

This is a little different from reporting bugs. If you have a machine that I've not ported to, and have problems, I'll require the relevant information:

A MIME attachment (preferably of the compressed files) is preferred, because logfiles can be awkward to send and receive via email. You may find the scripts which I use for building and saving logfiles useful.

If you're having trouble building on a known “good” platform, please make sure that you've got a current version of ncurses, and please read the installation instructions.

Updates to terminal database

I attempt to verify users's proposed changes to the terminal database. Most of those are for terminal emulators, although there are still (2018) occasional updates for hardware terminals. Calling them all “applications”, there are some limitations which must be mentioned, based on developers' past abuse of common-sense guidelines:

Given those limitations, keep in mind that the terminal descriptions have to work with ncurses:

Furthermore:

Why aren't my bugs being fixed?

Sorry. This is a hobby. There's a large backlog. Some changes pass review quickly, others are difficult, because one fix may break other functionality. My criteria are less stringent if you provide a short program that demonstrates the problem, or if you're modifying something that you maintain.

In any case, I will incorporate patches into my beta version only if I have reviewed the patch, tested it (if the patch is not obvious), and repaired any omissions (e.g., portability constraints). Occasionally I have patches (including my own) which cannot pass immediate review; these constitute most of my backlog. A small part of my backlog consists of issues which highlight incompatibilities between ncurses and SVr4 curses; these are listed in the TO-DO file.

I use the following guidelines:

How are patches organized?

Prior to version 4.0 I posted patches to the ncurses mailing list summarizing only my changes (after applying changes submitted by others). The intent was that people who followed the list closely could build developmental versions.

Generally (unless we find a serious error), I issue patches on Saturdays, since validating patches takes time.

Beginning with version 4.0, I maintain “complete” patches (my changes together with those that I have integrated). It is simpler, and does not require making complete snapshots as often.

Most files have RCS identifiers. If you are maintaining ncurses in an RCS (or CVS, etc.) archive, you can keep in sync with this using the "-k" option of ci.

Standardization

POSIX Compliant?

That depends.

The library and utilities use (where possible) POSIX interfaces.

However, X/Open Curses is not part of POSIX (the 1003.x series, referred to as the Base Specifications). It is a different standard, updated less frequently, and bundled as part of the Single UNIX Specification.

Quoting from Advanced Programming in the UNIX Environment, third edition (Stevens and Rago):

The third version of the Single UNIX Specification (SUSv3) was published by The Open Group in 2001. The Base Specifications of SUSv3 are the same as IEEE Standard 1003.1-2001 and are divided into four sections: Base Definitions, System Interfaces, Shell and Utilities and Rationale. SUSv3 also includes X/Open Curses Issue 4, Version 2, but this specification is not part of POSIX.1.

...

In 2003, the Single UNIX Specification was updated, including corrections and new interfaces, removing obsolete interfaces, and marking other interfaces as being obsolescent in preparation for future removal. Additionally some previously optional interfaces were promoted to nonoptional status, including asynchronous I/O, barriers, clock selection, memory mapped files, memory protection, reader-writer locks, real-time signals, POSIX semaphores, spin locks, thread-safe functions, threads, timeouts, and timers. The resulting standard is known as Issue 7 of the Base Specifications, and is the same as POSIX-1.2008. The Open Group bundled this version with an updated X/Open Curses specification and released them as version 4 of the Single Unix Specification in 2010. We'll refer to this as SUSv4.

Additionally, ncurses

The Austin Review mailing list archives frequently mention POSIX features which ncurses uses, but do not mention curses itself.

LSB Compliant?

Perhaps the reverse. LSB largely complies with the ncurses and X/Open Curses documentation, but LSB is not used by ncurses.

The Linux Foundation's LSB (Linux Standard Base) combines POSIX and curses and other technical areas from other groups. ncurses is part of the LSB's Core Specification.

Currently in its 5th revision, the LSB describes some ncurses-specific features, e.g.,

In some cases, the LSB is incorrect:

Y2K Compliant?

Certainly.

The ncurses library does not store or retrieve dates in any form that depends on the year. Ncurses' use of time information is limited to


Terminology

Ncurses is used primarily with terminal emulators. A few people use it with hardware terminals.

Terminals

Short for data terminals, terminals provide users with the ability to enter and view data. The word terminal refers to something that is the endpoint.

Terminals are generally not part of the computer, nor are they necessarily near the computer. Originally, terminals were connected to the computer by cables, later by local networks. The terminal emulator running in your computer's desktop environment is a special case—still using a network connection, but perhaps sharing keyboard and display with other terminal emulators.

Emulators

An emulator of course is something which behaves like something else. In the case of terminals, these are programs which provide the same functionality as hardware terminals, or even other terminal emulator programs.

Control sequences

Often referred to as escape sequences because many begin with the ASCII escape-character, control sequences are sequences of characters sent to a terminal to make it perform some operation. Most terminals (the ones that ncurses deals with) are asynchronous, and accept control sequences which update parts of the display. There are others, e.g., the synchronous "block-oriented" terminals such as the IBM 3278.

The VT100's control sequences are used in many terminal emulators for example. In turn, most of those control sequences follow standards established by ANSI, ISO, ECMA. These are the most useful (and accessible):

The standards do not give exact functional definitions. For that, ncurses development relies on vendor documentation, analysis and comparison testing.

Consoles

Originally console referred to the front panel of a computer, e.g., lights and switches, as well as the attached operator's terminal. The switches would do more than just turn the computer on and off.

The X Window system can be run on many of the console terminals. Sun's workstations for example did this. Few people used the console terminal on that hardware (which by the way was not VT100-compatible). Since X took over the computer's display, some way was needed to make the operator messages visible. The xconsole program did that; desktop systems provide analogous solutions. It is not necessary to use a terminal emulator to display operator messages. A few terminal emulators (such as xterm) can intercept console messages as an optional feature. The konsole program on the other hand, does not perform this function, notwithstanding its name. Rather, it is a terminal emulator.

Microsoft Windows's treatment of console devices has changed:

Like the Windows Console API, neither ncurses or pdcurses are terminal emulators. However, it is possible to write a terminal emulator using any of these application programming interfaces.

Additional Reading

For reference:

Dead trees:

Intentionally ignoring the “door stops” which reprint manual pages, these books (long out of print) give useful information:

Language bindings:

Other implementations:

Related applications:

Technically obsolete, but often cited:

Really old stuff

Interesting but misleading:

Copyright © 1997–2023, 2024 by Thomas E. Dickey <dickey@invisible-island.net>
All Rights Reserved.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of the above listed copyright holder(s) not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.

THE ABOVE LISTED COPYRIGHT HOLDER(S) DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL THE ABOVE LISTED COPYRIGHT HOLDER(S) BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
